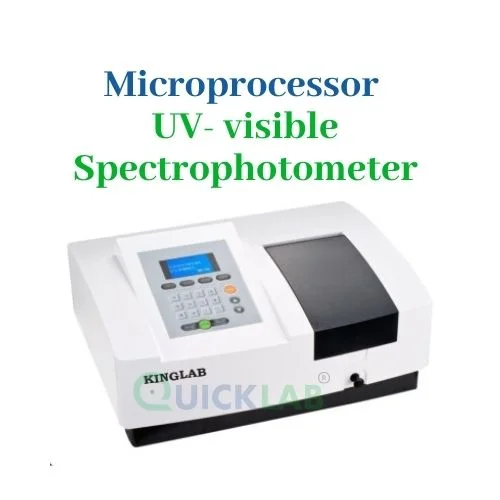

UV-Visible Spectrometer – Single Beam


Salient Features

  • Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.
  • Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance .
  • The Instrument is supply with PC Software expands the capabilities of the instrument includes photometric analysis, Quantitative analysis, Spectra Scanning, Kinetics,
  • DNA/Protein analysis multi-wavelength test etc.,
  • Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
  • Equipped With USB port to connect with PC to Display Spectrum Scanning Kinetics and Multi Wavelength testing results on the screen.
  • Plug type deuterium lamp and tungsten lamp transfer tamps without optics debugging.
  • User Set Wavelength automatically through arrow keys to avoid operation errors.

129,000.00 175,000.00

Application

  • Medicine / Pharmaceutical
  • Industry Environment Monitoring
  • Commodity Inspection
  • Food Inspection
  • Agricultural Chemistry
  • Teaching in colleges & Universities
  • Metallurgy
  • Geology
  • Machine Manufacturing
  • Petrochemical Industries
  • Water and Waste Water Labs
  • Food and Beverage Labs

Specifications

Model QLUV1110
Make QUICKLAB
SPECIFICATIONS
Optical System Single Beam, Grating 1200 Lines/ mm
Wavelength Range 190 ~ 1100nm
Spectral bandwidth 2 nm
Wavelength Accuracy ± 1 nm
Wavelength Repeatability ± 0.2 nm
Photometric Accuracy ± 0.5% T
Photometric Repeatability 0.2%T
Photometric Range 0-200%T, -0.3 – 3A
Stray light < 0.5%T
Stability ± 0.0002A/h @ 500 nm
Baseline flatness ± 0.002 A
Noise ± 0.001 A
Wavelength Setting Auto
Light source imported Deuterium & Tungsten lamp
Display 128×64 LCD
Detector Silicon Photodiode
Data Output USB port & Parallel port (Printer)
Cell Holder 4 Position 10 mm cell holder
Power AC 220V/50Hz, AC 110V/60Hz
Dimension 590x460x220mm
Weight 16kg

Design & Specification are subject to change without any prior notice.

Standard Configuration

  • Main Set -1 No,
  • USB Cable -1 No,
  • Including a 4 Glass Cell -1No,
  • 2 Quartz Cell -1No,
  • Operating Manual Software Manual – 1 No,
  • Software CD – 1No,
  • Power Cable -1No.

EAN: 8900000137572 SKU: QLUV1110 Category: Tags: , , ,
