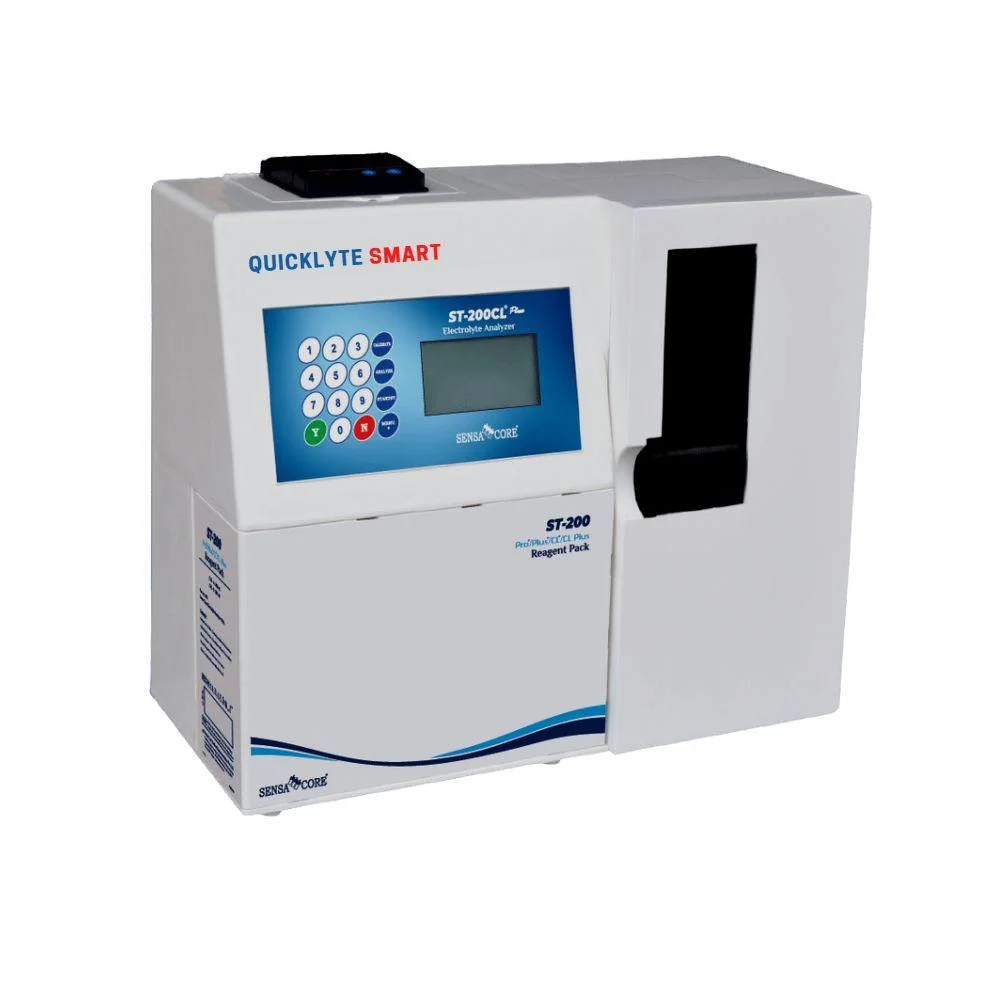

Quicklyte -Electrolyte Analyzer ST200 Cl Plus

Quicklyte Electrolyte Analyzer is a completely automated, microprocessor-controlled electrolyte system that uses current ISE technology to make electrolyte measurements. It measures various combinations of sodium, potassium, Ionized Calcium, Lithium, pH and Chloride in whole blood, serum, plasma, and urine.

Maintenance of these Electrolyte Analyzers is limited to the replacement of Reagent Pack, Maintenance-Free Electrodes, Disposable Valve, and  Pump Tube which is just plugged and play

• Principle: Direct measurement with the ion-selective electrode (ISE).
• Parameter conversion: This functionality allows quick change of analyte, which enhances laboratory performance
• Sample: Whole blood, serum, plasma, CSF and diluted urine. for diluted (1:5) urine 500 microlitres.
• Sample Volume: 150 microlitres
• Non Detectable Mode: 250 microlitres
• Measuring time: 60 seconds
• Throughput: 55 Samples / Hour
• Data Storage: 1000 Sample, 1000 Urine, 100 QC.
• Ambient conditions: Temperature: 50C – 400C , <85% non-condensing humidity.
• Output: 128×64 graphics display with Y/N numeric keypad, 24 columns thermal printer, Serial USB port.
• Input voltage: 100/115-VAC, 50-60 Hz or 220-VAC, 50-60 Hz, 0.75 amp.
• Size & Weight: 15.1” W x 13.2” H x 7.5” D, 4 kg.
• Battery: Optional for 6hrs backup.
