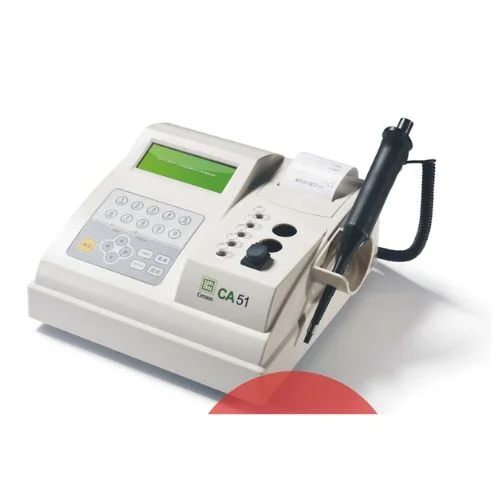

Quick CA 51- Semi Auto Coagulation Analyzer

Quick CA 51 – Semi Auto Coagulation Analyzer

Specifications

Test Method: Dispersion light nephelometric analysis

Test Principle: The highest point on first order differentiation, Percentage analysis

Zero Point Correction: Auto track the zero point, eliminate the interference of sample and reagent

Wavelength: 470nm

Light Source: Cold lamp with high brightness and long lifetime

Detector: Unique dispersion light detector with high sensitivity and repeatability. immunized the effect on the result of jaundice. hemolysis. chyle and turbidity on plasma

Test Channel: Each channel is independent, one or more, same or different items can be tested simultaneously

Incubator: Provide reagent and sample with stable incubator,

Incubator Temperature:  37 +_0.2  degree Celsius

Measure Pipette: Auto pipette the measurement through a configured pipette

Item Modify: Easy to add or edit items, easy to set the item’s parameters

Calibration: Single-point calibration multipoint calibration auto store and match with a calibration curve

Quality Control Auto draw the quality figure Reagent: Open reagent system

Reagent Volume: <40 μL

Sample Volume: <40p L

Memory: Save more than 10000 sample results, and auto recovering the results when power is off during working condition

Repeatability: CV <5%

Calculative Item: S. %. PTR. INR. FIB can be got through PT. This leads to lower the cost of reagent

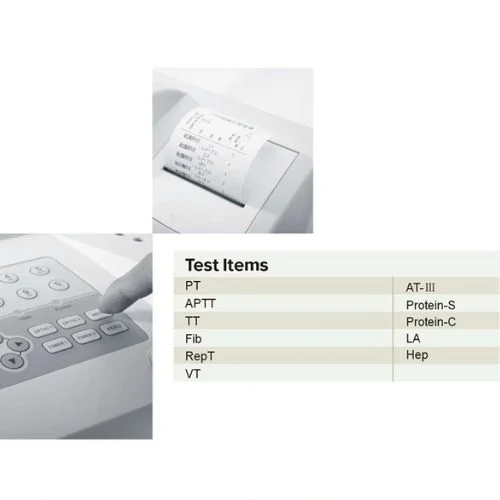

Printer: Inner thermal printer, can be connected to an external printer.

Information Edit: Easy to input and edit the detailed information of patients

Interface: RS-232 serial port. can be connected to an external printer and computer

Working Environment. Temperature 10C -30C Humidity: <70 %RH

Voltage: 85-264V. Auto adaption according to the input voltage

Power: <80W

Quality System: Recognized by CE, TUV, and CMD
