Description

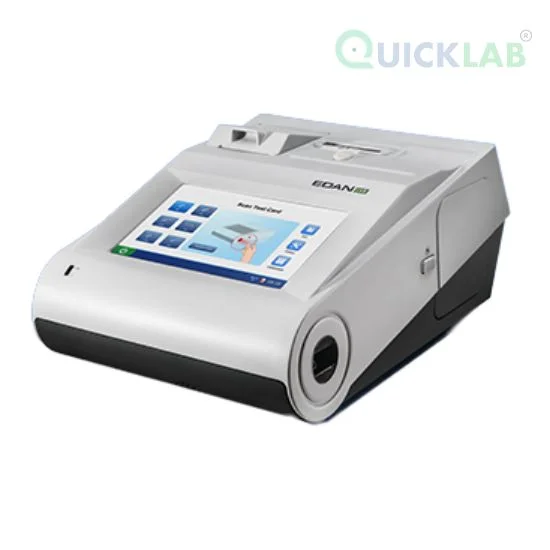

Quick ABG
Blood Gas & Electrolyte Analyzer
- Results in 4 minutes
- One test card 10 parameters
- Wifi and Bluetooth enabled
- Small Sample Size of 100 UL
“ A Handheld Blood Analyzer that Delivers lab-quality diagnostic results in Minutes”.
EASY OPERATION
Testing can be performed in 3 simple steps on the patient’s side with only 2 or 3 drops of whole blood
FAST RESULTS
Get accurate results in 4 minutes at the patient’s side to enable rapid decision making, and optimize patient care
MULTI-PARAMETER CARD
Single-use test cards offer a broad menu of tests on a single, portable platform. Each test card has a unique combination of biosensors to suit a wide range of clinical needs
HANDHELD PORTABILITY
Lightweight with a build-in battery allowing diagnosis at the point of care. patient side, out in the field or exam room
Reader
Sample: Whole blood, serum, plasma
Sample volume: 100 UL
Bar code: QR code
OC & calibrate : OC (Intelligent Quality Control)
Display: ASS touch screen
Connectors: Type C
Power : 5V 2A
Battery: 3.7V, 5000mAh
Printer: But in thermometer
Operating temperature : Temperature 5-32 degree Celsius. Relative humidity < 85% Barometric Pressure 86.0 kPa -100.00kPa
Weight: 600grams

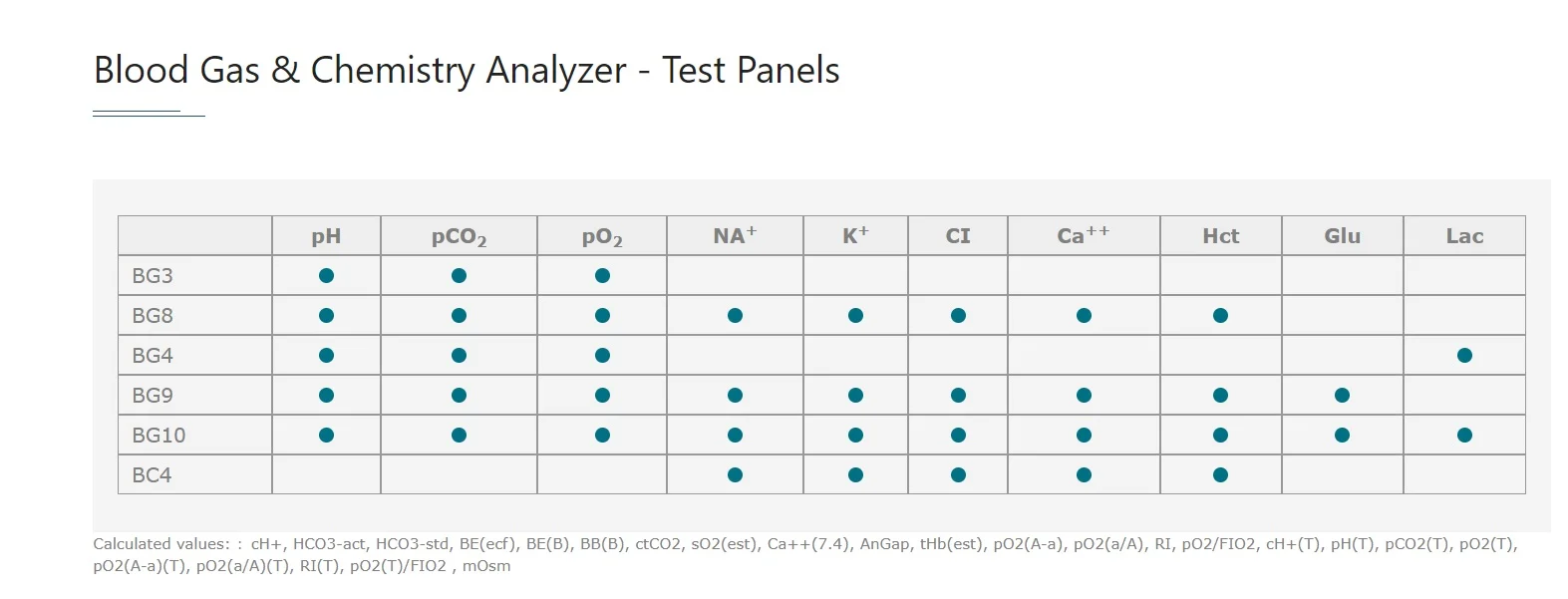

Test Card Measured Parameters
Parameter: Measurement Range
pH: 7.350-7.450
pCO2: 35.0 48.0 mmHg
Ca++: 1.15-1.33mmol/L
Hct: 38% – 51%
pO2: 83.0-108.0 mmHg
Glu: 74-100mg/dL
Na+: 138-146 mmol/L
K+: 3.5-4.5mmol/L
Lac: 0.36 0.75mmol/L
BUN: 8-26 mg/dL
CI-: 98 -107 mmol/L
Crea: 0.51 1.19 mg/dL
Test Card Measured Parameters
Parameter: Measurement Range
TCO₂*: 22.0- 29.0 mmol/L
cHgb*: 12.0-17.0 g/dL
CHCO3-*: 21.0-28,0 mmol/L
BE(ecf)*: -2.0-3.0 mmol/L
BE(b)* : -2.0-3.0 mmol/L
cSO2*: 94.0%-98.00%
AG*: 10-14mmol/L
