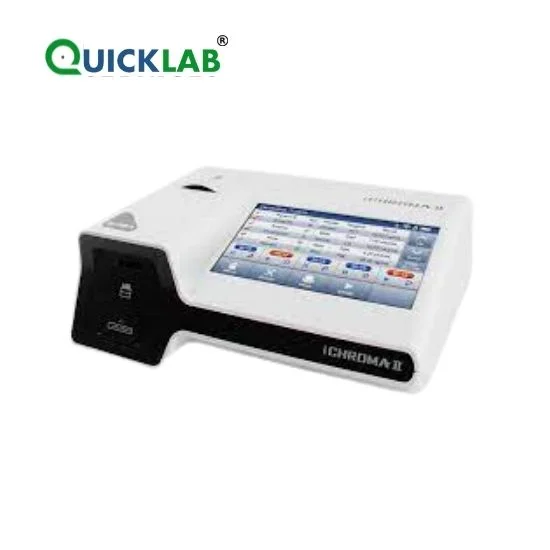

ichroma™ II is an automatic or semiautomatic in-vitro diagnostic device that measures the concentration of analytes, contained in blood, urine, or other samples, in quantitative or semi-quantitative ways. Compared to the first- generation device, ichroma™, ichroma™ II has an improved user interface and display and an advanced optical system, which provide the user with disease test options in wide range

ADVANTAGE

Interface: Expansion of user interface through adoption of Android OS

Display: 7 “touch panel provides operational stability and quick response

Portability: Battery for unexpected power failure or poor power environment for a certain period

Data storage and update: Available to store and search large amount of test results

Data back-up and OS update using SD card

Optical technology: Improved fluorescence optical module for high sensitive diagnosis

Measurement modes: Single, multi-mode, QC test and review (save results) mode

Stability: Reduced risk of test error based on the equation saving function

Connectivity: Built-in printer, improved wired / wireless connectivity, LIS / HIS communication

USB hub chip supporting 4 USB ports

Convenience: Keyboard adaptable for non-touchpad user Improved convenience to input sample ID and tester ID

SPECIFICATIONS

Dimensions :   276 mm (L)x220 mm(W)x91 mm (H)

Power supply :   DC 12V/5A, AC/DC Adaptor, (AA battery) DC 1.5V X 4ea. Input 100-240V ~ 50/60Hz, 1.8A. Output :          DC 12V/5A

Data output :  7” touch color LCD

Motor Stepper Linear Actuator (5V, 0.34A)

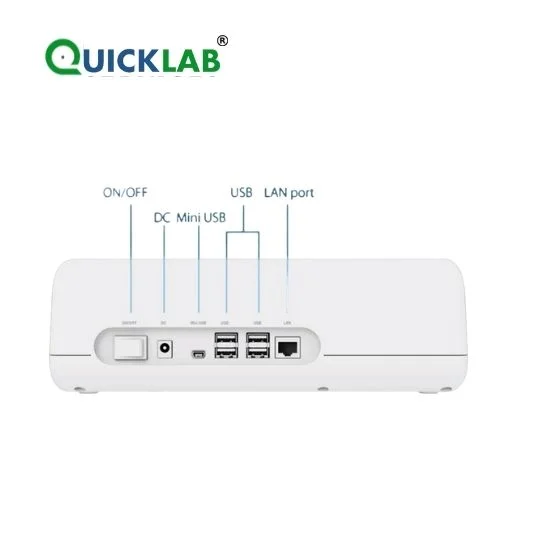

Communication ports USB 4 ports, LAN port

Operation temperature/ humidity range15 ~ 35°C

Storage temperature/humidity range Temperature -20 ~ 50°C, Humidity Max. 70%

Data output LCD and built-in printer

Test result storage Patient test results (1,000) / System check results (500)

Standard material (control) test results (1,000)

I CHAMBER INCUBATOR

The i-chamber is an auxiliary device for the ichroma (ichroma™, ichroma™ II) systems and provides an environment set to the correct temperature to the ichroma cartridge when heating is required between tests. You can improve the reliability of your test results by keeping the temperature constant, one of the environmental factors that can cause unexpected errors in your test results.
