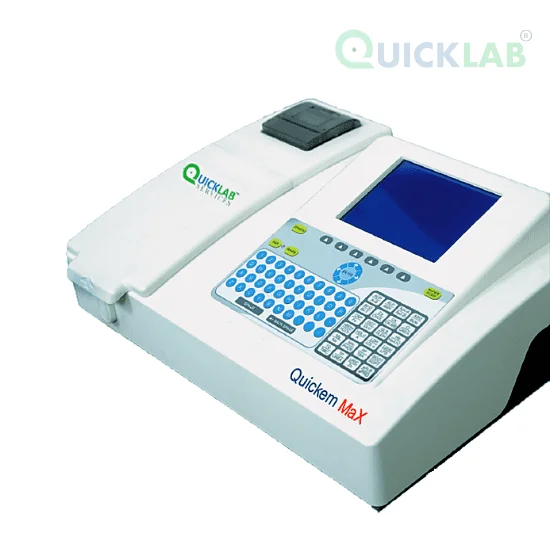

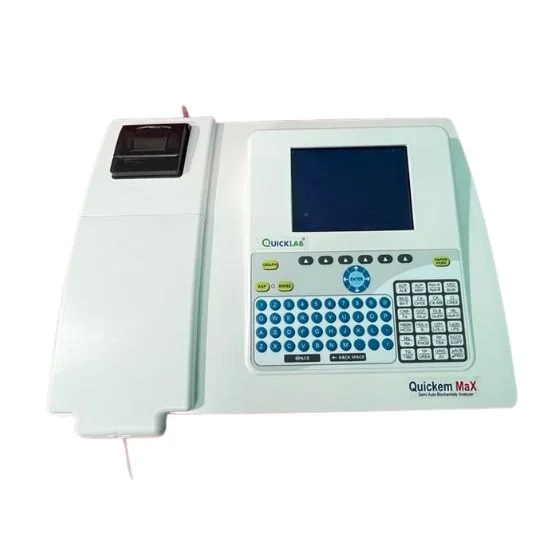

Quickem Max -Semi Auto Biochemistry Analyzer

Availability:

Out of stock
Compare

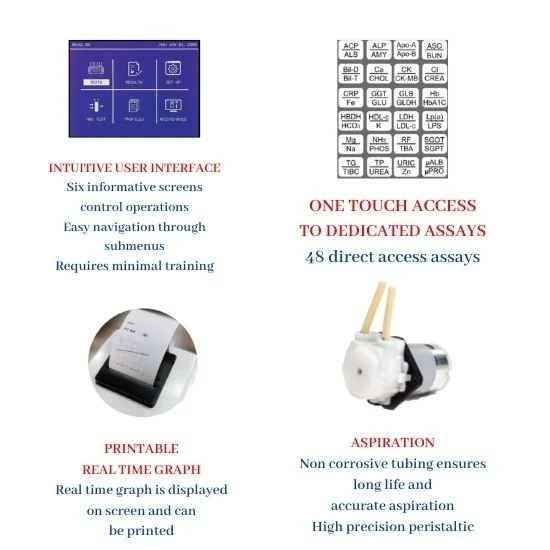

Features

  • Programmed to analyse Endpoint, Fixed time and Kinetic assays
  • Storage for 200 user programmable test methods and 10000 test results
  • Create up to 10 customised test profiles
  • 48 dedicated assays Direct access keys
  • Low reagent consumption, Low maintenance
  • High precision peristaltic pump Non corrosive tubing ensures long life and accurate aspiration
  • Aspiration air gap and auto empty function after each sample runMinimal chances of carry over
  • High quality surface coating ensures long Filter life
  • Halogen Quartz tungsten lamp (6V, 10Watt) Extended lamp life
  • Lamp life saving model (programmable sleep interval)
  • Real time graph is displayed on screen and can be printed
  • High quality Quartz Fow cell for precise measurements
  • Minimum aspiration volume – 300μl
  • 5.7 Inch LCD display screen
  • Consistent and reliable results
  • Indian design and manufacturing
  • RS 232 Port • USB Port
  • PC Connectivity (optional)



Download Catalogue Here….



₹95,000.00 ₹105,000.00

Out of stock

Add to Quotation

ANALYSIS METHOD

Endpoint, Fixed time and Kinetic Sample blanking and Reagent Blanking Direct Absorbance measurement mode

PHOTOMETRIC MODULE

Seven Narrowband Interference Filters Filter Wavelengths: 340, 405, 505, 546, 578, 630 and 670nm (1 open position for optional Flter)

Wavelength Accuracy : ±2nm

DATA MANAGEMENT

Storage of up to 10,000 test results Stores 30 days QC for each Assay Reagent Blank storage

REPORTS

Search by date, sample ID or Test Name Calibration Reports, QC results

PHOTOMETRIC MODULE

Seven Narrow band Interference Filters
Silicon Photo Diode detector
Absorbance Range : 0.0 – 3.0 A
Photometric Drift : < 5 mAbs/30min
Filter Wavelengths: 340, 405, 505, 546, 578,
630 and 670 nm (1 optional Filter)
Resolution : 0.0001 Absorbance Units
Wavelength Accuracy : ±2nm

MEASURING MODULE
Dual mode ( Flow cell & Cuvette)
30 μl Flowcell volume
External cuvettes (10mm path length)
High quality Quartz Flow cell for
precise measurements
Peltier-controlled reaction
temperature

POWER

Input Voltage Range : 88 – 264 VAC
Frequency Range : 47 – 63 Hz
Power consumption : 75 W max

DIMENSIONS
Length : 422mm • Height : 176mm
Width : 324mm • Weight : 6.5 kg

EAN: 8900000090495 SKU: SA01 Categories: , Tags: , , , , , , , ,
