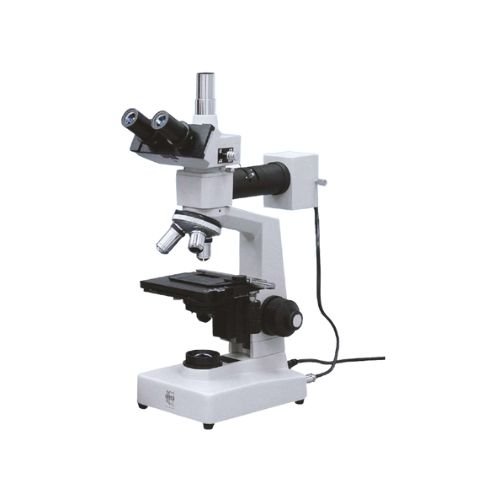

Dual-Illumination Metallurgical Microscope – TDM-50
- Unlike most other metallurgical microscopes, this model comes with both reflected and transmitted illumination.
- It is an ideal instrument for metallurgical and materials analysis.
- It is also a great microscopy system for viewing transparent materials including those in biological applications.
- It comes with a 30 degree inclined 360 degree rotatable trinocular head, coarse and fine focusing, mechanical stage, and halogen reflected and transmitted illumination system.
- This is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, silicon wafer inspection, industrial Inspection, quality control, and foundries.
- Change magnifications quickly using the four-lens turret without significant refocusing thanks to the parfocal design.
- Using the included 10X eyepieces, the magnification range spans from 40X to 1000X with four unique settings.
- The lenses are achromatically corrected for improved resolution, and flat field corrected to ensure edge-to-edge sharpness.
Compare
- Nosepiece: quadruple Focusing Range: 1-9/16″ (40mm) Interpupillary Adjustment.
- Range: 2-3/16″ – 3-0″ (55 – 75mm) Mechanical Tube Length: 6-5/16″ (160mm).
- Head: 30 degree inclined trinocular Camera/Video Trinocular Port: 23mm.
- universal/standard photo tube Eyepieces: 10X Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 100X (spring, 1.25NA).
- Stage Dimensions: 5-1/8″x 413/16″ (130x122mm).
- Stage Traveling Range: 1-3/16″x2-3/4″ (30x70mm).
- Vernier Division: 0.004″ (0.1mm).
- Illumination: halogen.
- Power Supply: 110VAC 60Hz.
| GTIN |
|---|
- Applications: Industrial Inspection, Metallurgy Microscopes, Compound Microscopes.
- Categories: Special Microscopes, Special Microscopes/Metallurgical, Compound Microscopes/Metallurgical.
- Condenser Design: Abbe-Rack & Pinion w/ diaphragm.
- Condenser Optics: NA 1.25 Bright College, Teaching/Training.
- Condenser Type: Bright.
- Education Level: College, Teaching/Training. Trinocular.
- Eyepiece Mounting Size: 23mm.
- Field of View Class: Widefield.
- Head Style: Trinocular.
- Illumination Bulb Count: 2.
- Illumination Power: 20W, 30W.
- Illumination Style: Incident & Transmitted.
- Illumination Type: Halogen.
- IRIS: With Iris.
- Magnification: 40x-1000X.
- Magnification Type: Multi-Power.
- Objective Lens Power: 4X, 10X, 40X, 100X.
- Objective Mounting Size: 20mm.
- Optics: Plan, Achromatic.
- Power Compatibility: Ilov.
- Product Type Category: Compound.
- Stage Type: Two-layer Mechanical Stage.
