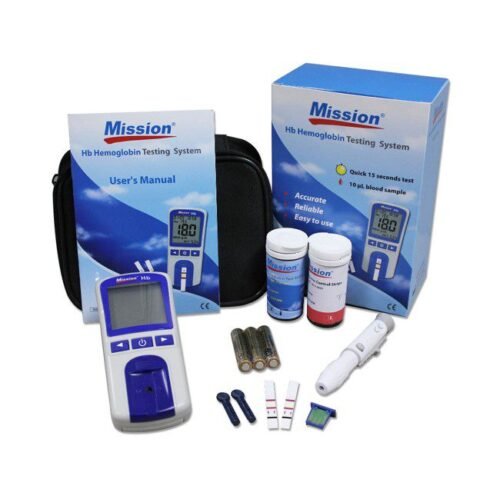

HB Meter - Haemoglobin Test Meter

Availability: In stock
SKU: HB001
Designed for POC Testing
  • Portable handheld
  • Large, easy-to-read LCD
  • Stores up to 1,000 results

Accurate

  • Precise results equivalent to laboratory analyzers
  • Wide Hb measurement range of 4.5 – 25.6 g/dL
  • Calculated Hct range of 13 – 75%

Quick & Convenient

  • Results in < 15 seconds
  • Auto-calibration
  • Fast data transfer via Mini USB port

4,800.00

Return & Refund: 10 Days

Buy Now

Description

Product Specifications
Features Specifications
Methodology Reflectance  Photometry
Detection Principle Methemoglobin
Time to Results < 15 seconds
Memory 1,000 tests with date/time and ID number
Specimen Volume 10 µL
Specimen Type Capillary and Venous whole blood
Hb Measurement Range 4.5-25.6 g/dL
Hct Range 13-75%
Wavelengths 525 nm
PC Interface Mini USB Port
Calibration Automatic
Hb Within Run Precision ≤ 3%
Hb Total Precision CV ≤ 3%
Accuracy
  • Venous Blood: Y=0.9582X+0.5673, R2=0.992
  • Capillary Blood: Y=1.006X+0.026, R2=0.993
Operating Conditions 10 – 40 ºC (50 -104 ºF); ≤90% RH
Meter Storage Conditions 0-50 °C (32-122 °F); ≤90% RH
Strip Storage Conditions 2-30 °C (36-86 °F); ≤85% RH
Strip Shelf Life 2 years unopened  canister; 3 months opened canister
Power Source 3 AAA Batteries or AC Adapter
Battery Life 2,700 tests or 360 hours
Automatic  Shut Off 8 minutes
Meter Dimensions 127 × 58 × 25 mm (5.0″ x 2.28″ x 0.09″)
LCD Dimensions 39 × 37 mm (1.54″ x 1.46″)

Additional information

Weight 0.850 kg
Dimensions 10 × 6 × 4 cm
