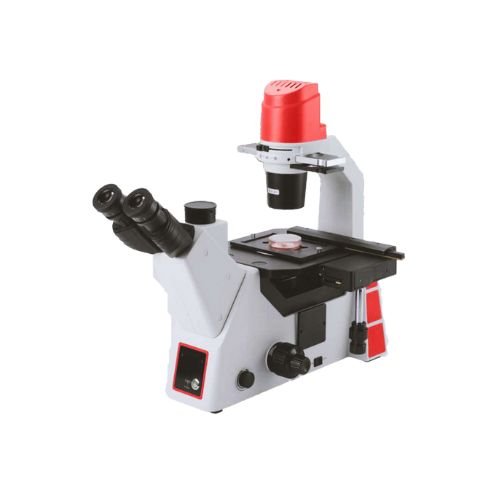

Inverted Biological Microscope – IMX-600
- With ergonomic designed frame and superior optical system, IMX-600 is available for clear micro image and easy operation.
- Specially designed for cell tissue culture, IMX-600 with high contrast and resolution, highlighting the outline and internal structure of cells, meets the needs of basic laboratory research.
- With the core concept of energy conservation and environmental protection, IMX-600 is more intelligent and longer lifetime.

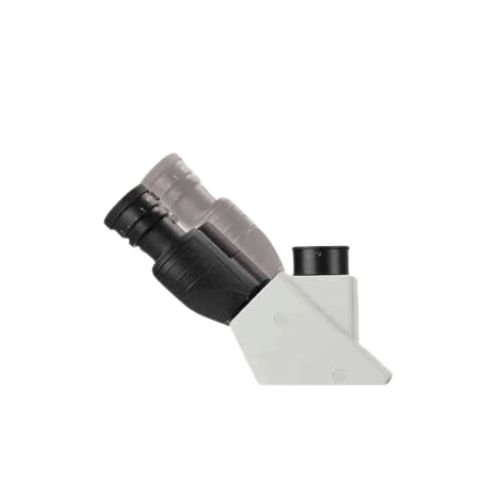

Ergonomic viewing head:
360° rotatable viewing head with 50mm-75mm adjustable inter-pupillary distance, the eye-point can be raised 34mm directly by rotating the tube at 65mm IPD, more convenient and faster than traditional way.
Compare

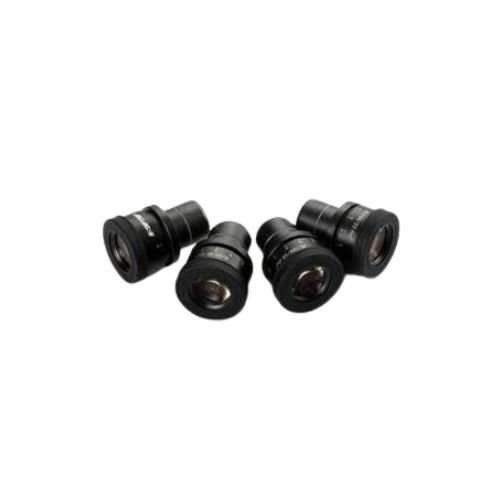

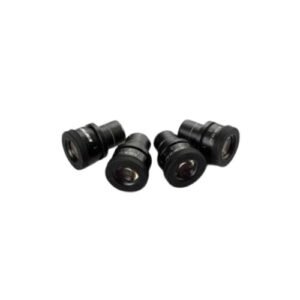

Wide field plan eyepiece:
Plan 10X eyepiece with 22mm field of view, wide and bright, is easy for target searching. High eye-point, effectively relieve the visual fatigue.
Phase contrast kit/objective:
Super long working distance plan achromatic objectives 4X/10X/40X together with 20X phase contrast objective for standard recommendation, provide clear and high contrast image. Dedicated phase contrast plate, working with QUICKLAB phase contrast objectives, ensures the best contrast image of living cell or other undyed samples.
Practical “marking objective”:
New designed “objective” with ink inside for marking the target, is very practical and effective to extract the target cell when to observe and culture the living cell.
| GTIN |
|---|
- Optical System: Infinity color corrected optical system 45° inclined trinocular head, 360° rotatable, inter-pupillary range.
- Viewing Head: 50-75mm, fixed splitting ratio=5:5 High eye-point wide field plan eyepiece PL 10X/22mm, with adjustable diopter, micrometer attachable.
- Eyepiece: High eye-point wide field plan eyepiece PL15X/16mm, with adjustable diopter.
- Objective: Infinity plan achromatic objectives 4X/10X/20X/40X/60X, Infinity plan phase contrast objectives 4X/10X/20X/40X, Infinity plan fluorescence objectives 4X/10X/20X/40X/60X, Infinity plan phase contrast and fluorescence objectives 20X/40X.
- Nosepiece: Quintuple nosepiece, Quadruple nosepiece.

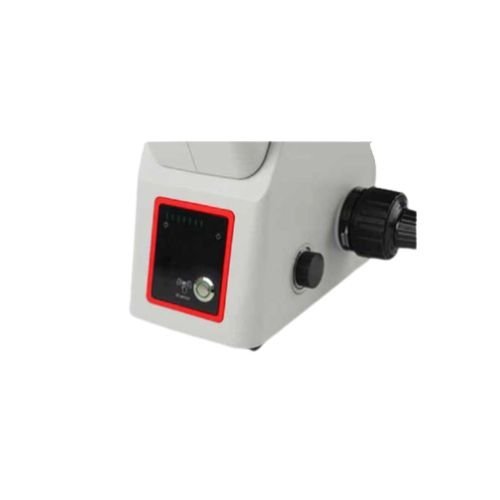

- Frame: Biological frame with coaxial focus system, coarse range: 9mm (6.5mm up and 2.5 down), fine precision: 0.002mm. With upper limit and tension adjustment., External wide voltage transformer, 100V-240V input and 12V5A output; 5W LED with light indicator, intensity adjustable. With infrared induction.

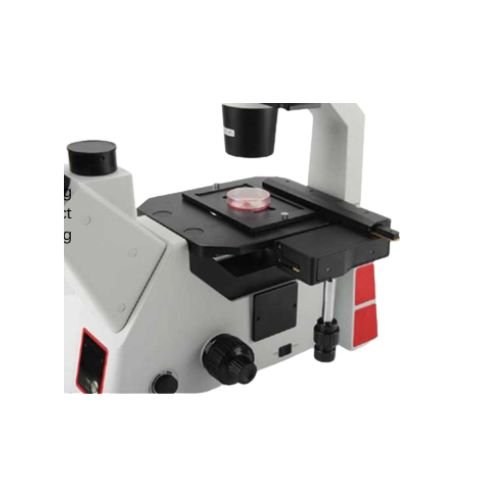

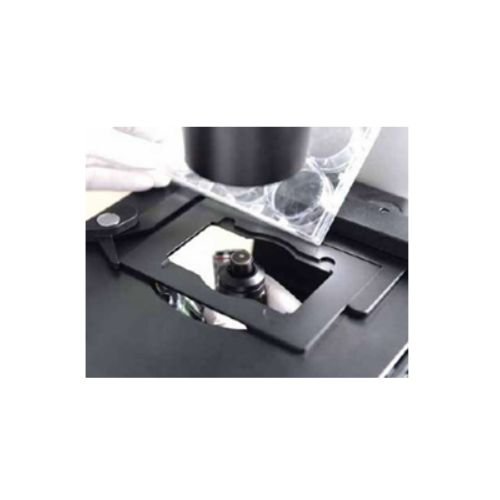

- Stage: 215mm X 250mm fixed stage; mechanical stage attachable, moving range: 120mm X 80mm; extension plate; slide holder; Petri dish holder; Teraseki holder; metal plate; glass plate.
- Condenser: NAO.3 long working distance condenser. Color temperature change filter, green.
- Camera Adapter: demountable. 0.35X, 0.5X, 0.65X, 1X C-mount adapter.
- Others: Interference filter, infrared eliminate filter.
