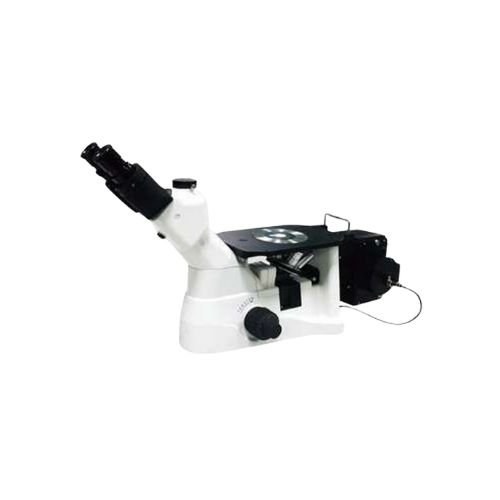

Inverted Metallurgical Microscope – XD30M

Eyepiece:

• Basic: PL10X/22mm (Ø30).
• Option: PL10X/22mm optical, PL15X/16mm (Ø30).

Objective:

• The Infinite Chromatic Correction Objectives provide excellent quality and high resolution for clear images.
• The long working distance means there is no need to worry about hitting the stage when changing the objective, and high magnification lenses can also be freely changed.

Illumination System:

• Adopting the Koehler illuminator system and 12V/50W halogen lamp, the brightness is clearer and the service life is long.
• The power range is wide from 90 to 240V, and the brightness is adjustable.
• It is very convenient to adjust the brightness of the light with the brightness adjustment knob.
• The condenser lens is easy to replace, and it is also easy to replace the condenser lens when observing with a long culture vessel (flask).

Head:

• The height of the eye point is 400mm, which is cemfortable for observation and use while sitting standing.
• The Gemel binocular head with a 45° incline allows for diopter adjustment.
• The trinocular joint can adjust the light path for image collection and recording.
• The image is output with 80% of the light intensity, and the remaining 20% can be used for observation.

Stage and its accessories:

• The standard stage is a large-sized fixed flat board.
• The surface is waterproof and anti-corrosion treated by applying advanced hard coating technology; Accessories such as extension boards or mechanical specimen holders can be installed on both sides of the stage.
• The mechanical specimen holder has control buttons located low on both sides for easy use, providing comfort.
• Various types of culture holders are available.
