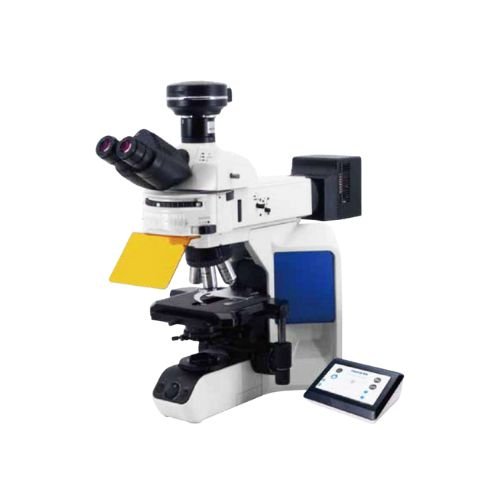

Research Level Fluorescence Microscope
- Eyepiece: Wide field 10X/25, diopter is adjustable.

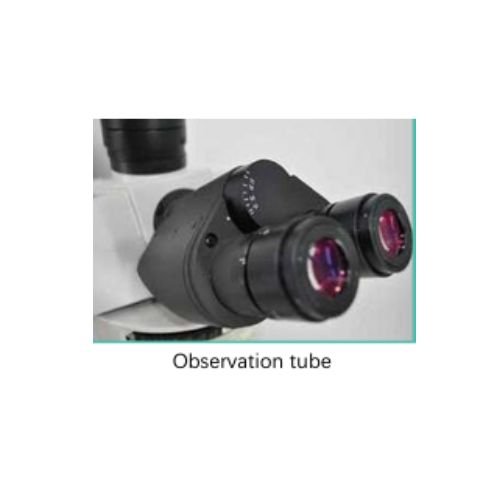

- Observation Tube: 300 inclined hinged trinocular head, high eyepoint, pupil distance 50-75mm.

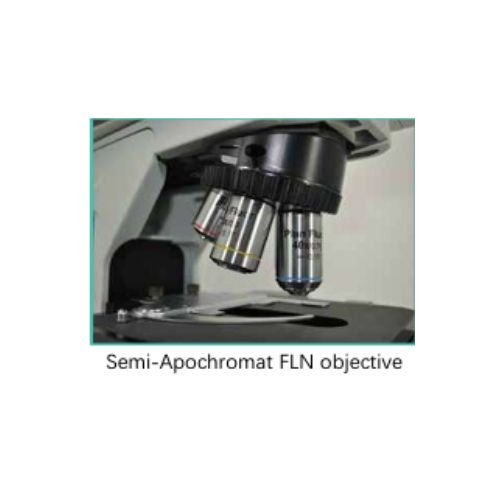

- Infinity Plan Semi-Apochromatic: M-UPLFLN 4X/0.13; WD :17.15mm, M-UPLFLN 10X/0.3; WD :7.68mm.

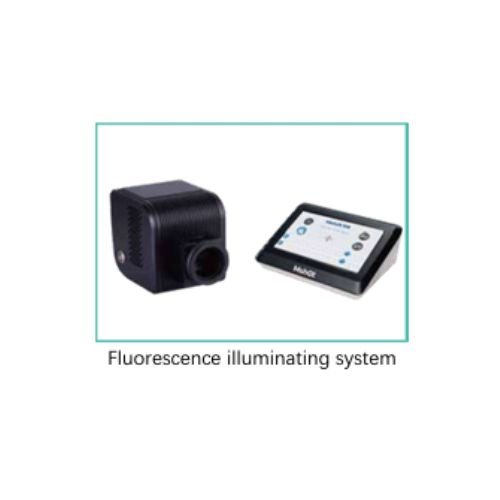

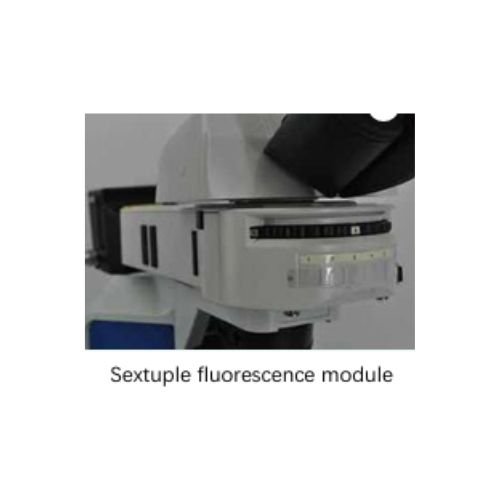

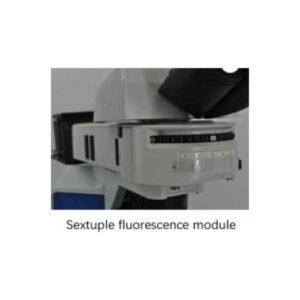

- Fluorescence Objectives: M-UPLFLN 40X/0.75 :WD :0.78mm, M-UPLFLN 100X/1.30 Oil; WD :0.15mm Broad spectrum high power LED light source (mercury lamp is optional), Power box for LED light source MGI 00, Sextuple fluorescence module FL-43, Excitation wavelength.
- EPI-Fluorescence Illuminator: EX :375/30nm; DM :415nm; EM :460/50nm, EX :475/30nm; DM :505nm; EM :530/40nm, EX :560/40nm; DM :600nm; EM :610nmLP.
- Nosepiece: Quintuple nosepiece.

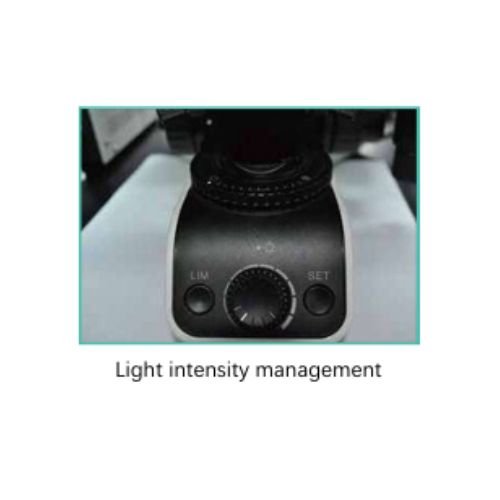

- Stage: Ceramic-coated coaxial stage with left or right hand low drive control Movement range 80mmx50mm, 1mm/unit, accuracy 0. Imm Warm white LED brightness continous adjustable.
- Transmitted Lighting: Abbe condenser, N.A. 1.1.
