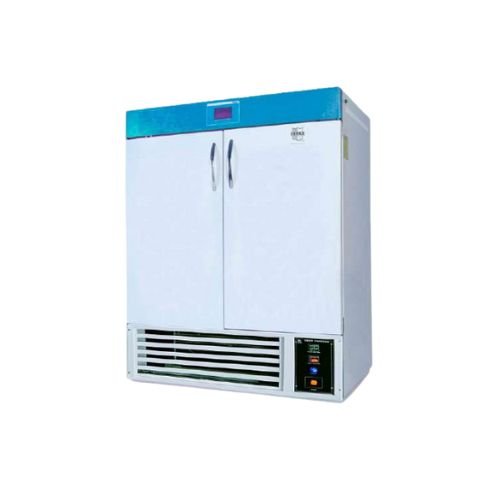

Seed Germinator – Double Chamber
Cabinet Construction :- Inner chamber made of highly grade rust tree stainless steel design and outer made of mild steel powder coated on stoving paint. Door opening provides full access to the chamber interior. A magnetic gasket provides a tight seal to door frame. A second internal glass door provides observation window with out disturbing the internal atmosphere. Shelving tiers of white epoxy coated aluminum.
Refrigeration :- Cooling for seed germinations is provided by a self-contained air-cooled condensing unit with hot gas bypass for continuous compressor operation.
Humidification:- Humidification system is a centrifugal humidifier. Centrifugal atomizing humidifiers must be supplied with clean water.
Control System :- Microprocessor based digital temperature controller with Graphic LCD display, capable of programming temperature, humidity and light intensity. PID controlled base system, relative humidity sensor is also provided.
Compare
Technical Data :
| No. Of chamber | : One (heating & cooling) |
| Capacity | : 20 cubic feet |
| Display | : Digital graphic LCD display |
| Number of shelves | : 16 shelves of S.S. |
| Temperature range | : 5-45°C |
| Temperature resolution | : 0.1 |
| Temperature selection resolution | : 0.1°C |
| Temperature Accuracy | : 0.2°C |
| Temperature stability | : ±0.5°C |
| GTIN |
|---|
- Automatic 0-24 hour’s timer to regulate cyclic illumination conditions.
- Automatic voltage stabilzer 3 KVA (recommended).
Air circulation : 1 Fan (minimum) Temperature uniformity : ±0.7°C Relative humidity resolution : 1% Relative humidity selection resolution : 1% Relative humidity resolution accuracy : ± 3% Relative humidity stability : ± 3% Light intensity : intensity is adjustable Working environment : 10- 400C Power supply : 220-40 VAC/1Ph/50Hz
