Ultimate Microscope with 4K Coms Camera – Scope – Cam 4K

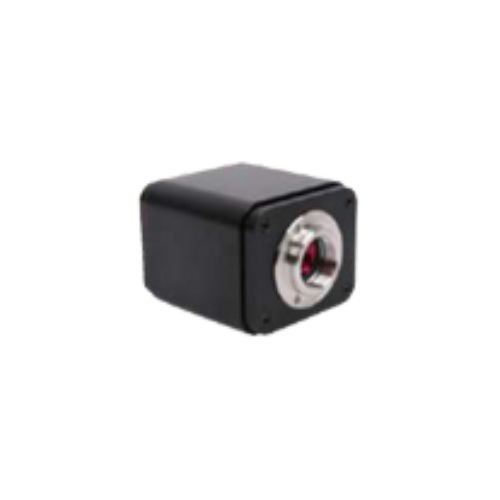

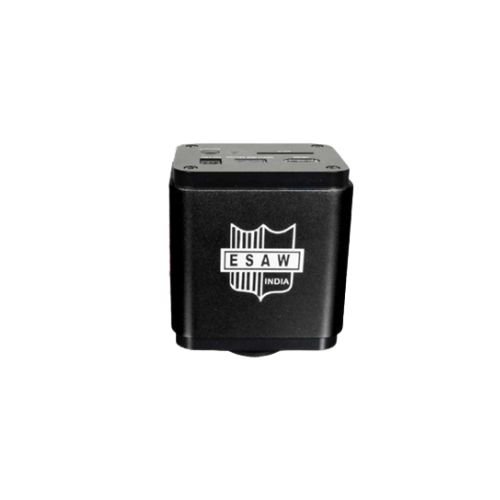

The Scope-Cam 4K series camera is the next-generation live view imaging-system with 4K resolution(Video) at 60 FPS.
It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems.
It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (LAN) for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of focus.
With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

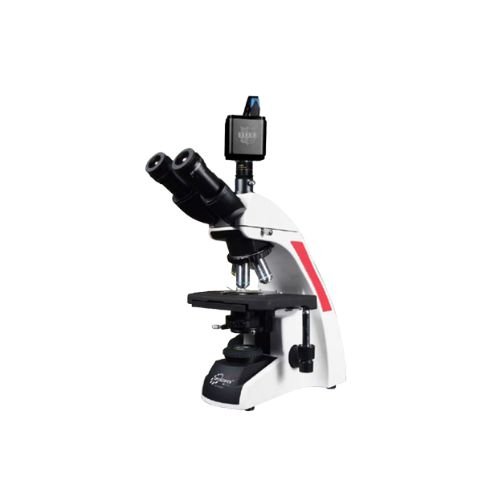

The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.

Sensor: 4K/Sony IMX183© 1/1.06″(13.06×7.27).
Pixel (M)µ: 2.4X2.4.
FPS Resolution: 30@3840×2160(HDMI) 30@3840×2160(NET WORK) 30@3840×2160(WIFI, GE)
USB Mouse: Connect USB mouse for easy operation with embedded Quicklab.
USB: Connect USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode.
SD: Comply with SD103.0 standard and SD card could be inserted for video and images saving.
HDMI: Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution.
UL Operation: With USB mouse.
Image capture: JPEG format with 5m resolution in SD card (xcam1080phb).
Video record: ASF format 1080p 30fps in SD card.
Camera control panel: Including exposure, gain, white balance, color adjustment, sharpness and denoising control.
Toolbar: Including zoom, mirror, comparison, freeze, cross, browser function.
HDMI Interface: Comply with HDMI1.4 standard 30fps@4K or 60fps@1080P.

GTIN	8900000256532
