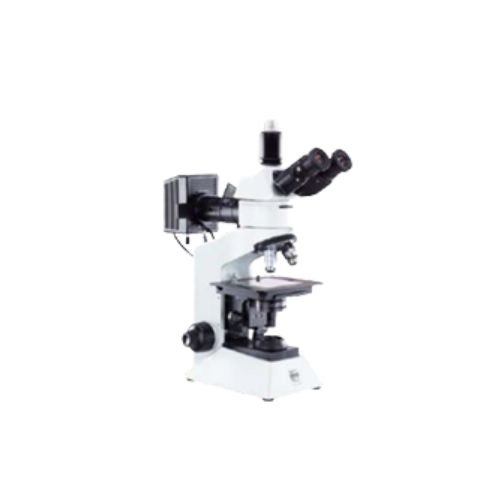

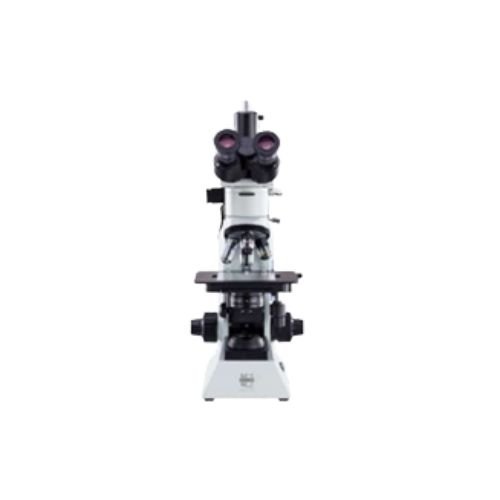

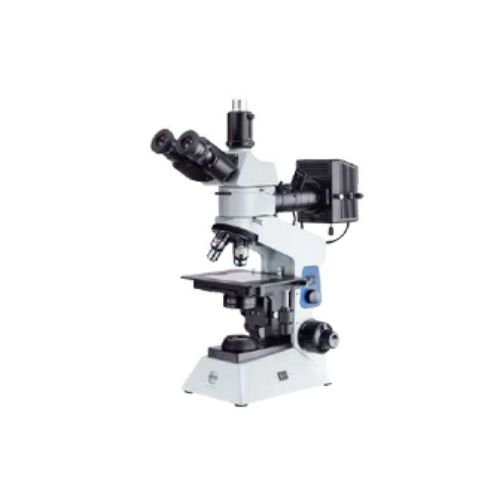

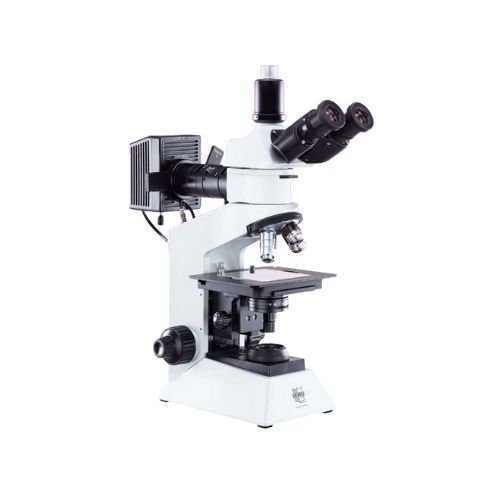

Dual-Illumination Upright Metallurgical Microscope – MLX-50i
- This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination.

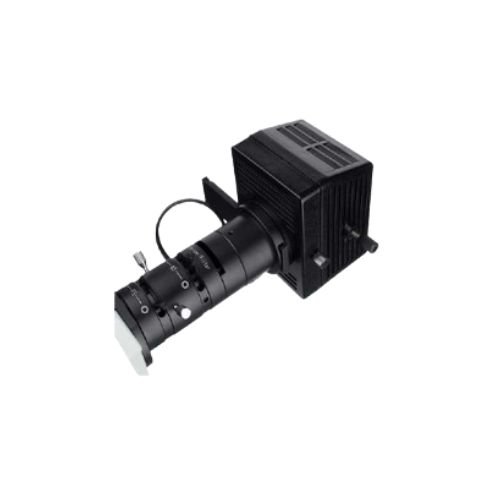

- The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms.
- The plan-achromatic optical system offers sharp, flat- field images with excellent color-correction.
- The Siedentopf head with dual diopters and high eyepoint eyepieces provides a comfortable and adjustable viewing platform.
- There is also a dedicated photo port for simultaneous viewing and imaging.

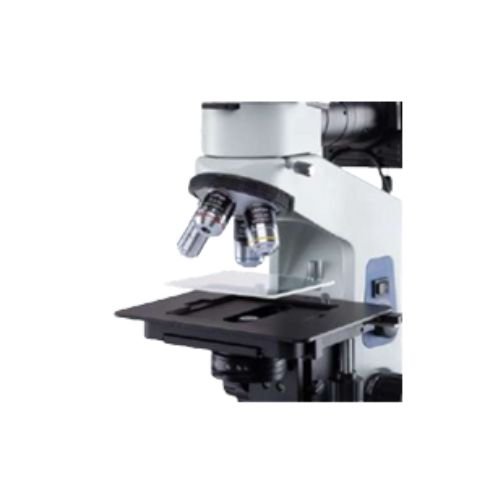

- Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design.
- Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings.
- The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
Compare
- An advanced metallurgical microscopy system with incident and transmitted illumination.
- Polarized lighting for structural analysis.
- Includes a range of filters for lighting manipulation.
- 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives.
- 4X, 10X, 40X achromat objectives.
- 10X plan eyepieces for flat-field viewing.
- Co-axial coarse & fine focusing system.
- 30 degree inclined 360 degree rotatable trinocular head.
- Coaxial coarse and fine focusing.
- Dual focusing control knobs.
- Focusing tension control mechanism.
- Adjustable interpupillary distance.
- Adjustable diopters on both eye tubes.
- Solid metal frame construction with stain resistant enamel finish.
| GTIN |
|---|
- Applications: Industrial Inspection, Metallurgy.
- Categories: Microscopes, Compound Microscopes, Special Microscopes, Special Microscopes/Metallurgical, Compound Microscopes/Metallurgical.
- Condenser Design: Abbe-Rack & Pinion w/ diaphragm.
- Condenser Optics: NA 1.25.
- Condenser Type: Bright.
- Education Level: College, Teaching/Training. Trinocular.
- Eyepiece Mounting Size: 23mm.
- Field of View Class: Extreme Widefield.
- Head Style: Trinocular.
- Illumination Bulb Count: 1.
- Illumination Power: 20W, 30W.
- Illumination Style: Incident & Transmitted.
- Illumination Type: Halogen.
- IRIS: With Iris.
- Magnification: 40x-500X.
- Magnification Type: Multi-Power.
- Objective Lens Power: 4X, 5X, 10X, 40X, 50X.
- Objective Mounting Size: 20mm.
- Optics: Plan, Achromatic.
- Power Compatibility: Wide Band.
- Product Type Category: Compound.
- Stage Type: Two-layer Mechanical Stage.
