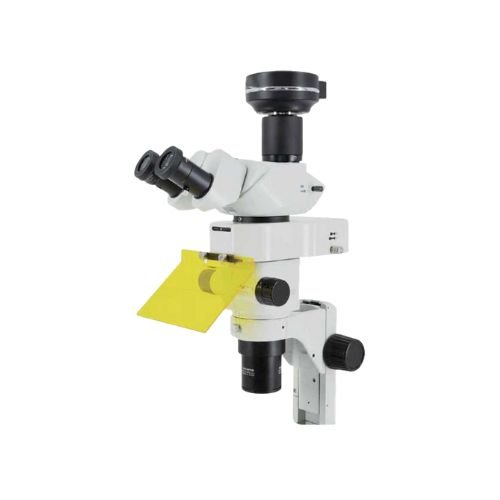

Stereo-Fluorescence Microscope
- Infinite parallel optical system.
- LED fluorescent dual light path.
- Superior zoom ratio.
- Outstanding image clarity.
- High cost performance.
Compare
ZEBRAFISH Zebrafish and human genes have a high similarity of 87%. As a model organism, zebrafish, has a prominent advantage, which means that its experimental results are mostly suitable for human body and can often be used for monitoring water quality and environment.
DROSOPHILA TRANSGENOSIS As a classic model organism, drosophila is used to various studies such as genetics, regulation of developmental genes, various neurological diseases, drug addiction and alcoholism, learning and memory, and some cognitive behaviors, all have Drosophila’s contribution.
TRANSGENIC BREEDING It refers to the breeding method of adding one or more genes to a biological genome through modern molecular biology technology to produce organisms with improved characteristics.
| GTIN |
|---|
- Eyepiece: WF10X/22.
- Head: Lead-free tube, 300 inclination, light path: eyepiece 100%/ photography 100%.
- Objective: 1X plan achromat objective, working distance : 90mm (2X is optional).
- EPI-Illumination LED Fluorescent: Blue(B) : 460-490nm, Green (G) : 510-550nm, Optional (W) : 330-380nm.
- Zoom Ratio: Zoom ratio: 9:1 (0.8x 5.6x), Magnification scale 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4,5, 5.6.
- Magnification: 8-56X.
- Base: SZ2-ST standard base, Fluorescence baffle M-FL.
