Stereo Zoom Prime Microscopes
The PRIME stereo microscope allow you to examine your specimen with high precision, generating three-dimensional images, suitable for your highest demanding applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or observing and preparing biological samples. These stereo microscopes can be supplied with a large choice of stands, with or without LED illumination. Ideal for a wide variety of applications. With additional lenses and objectives magnifications.
- Binocular and trinocular heads with HWF 10x/22 mm eyepieces.
- Zoom ratio 1 : 6.3, 8x to 50x.

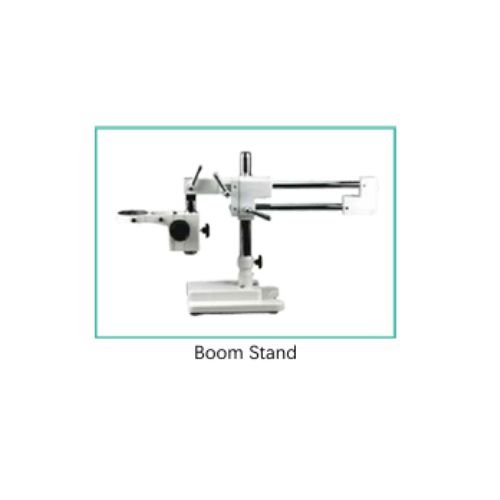

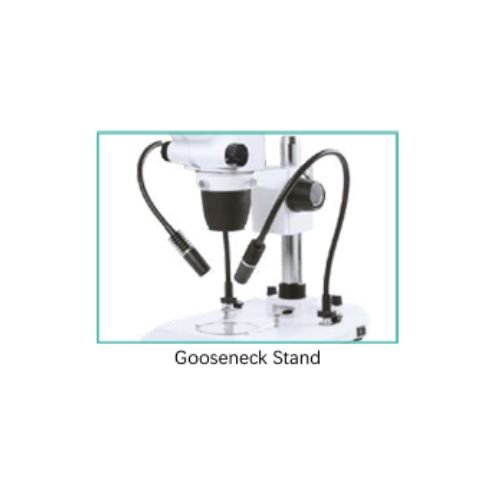

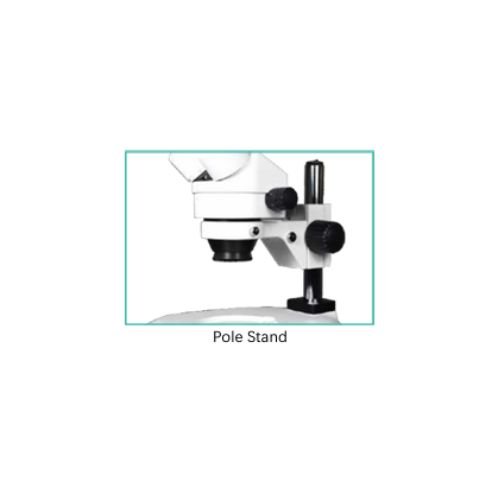

- Ergonomic stands.

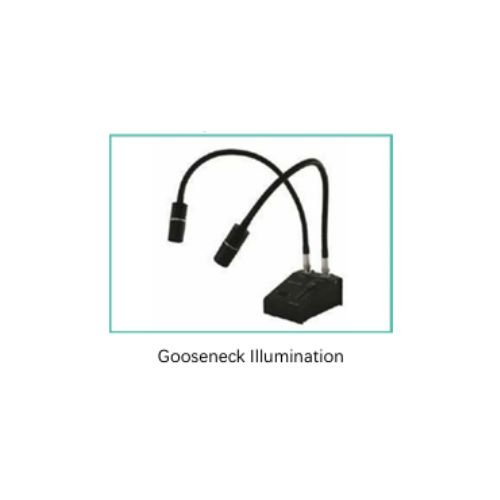

- Double 3 W LED illuminations.
- Large working distance (WD).
Compare
- Optical System: Greenough stereoscopic.
- Observation Head: Binocular observation head tiltable between 45ยฐ, rotatable at 360ยฐ. interpupillary distance from 55mm to 75mm.

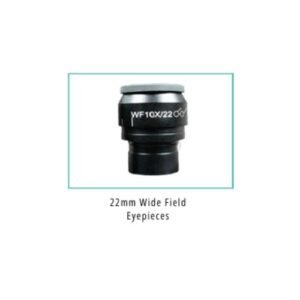

- Eyepiece: Wide field 10x (paired) f.o.v. 20mm.with diopter and eye guard.
- Zoom ratio: 1:6.3.
- Zoom Objective: 0.8x-5x.
- Magnification Range: 8x to 50x continuous with 10x eyepiece.
- Working Distance: 115mm.
- Mechanical Body: Lateral zoom control movement. incident 3w led lamp. track stand with Big size base. Clip for holding specimen with รธ125mm glass plate and additional white & black plate.

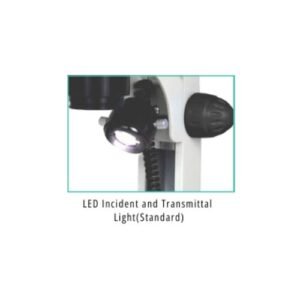

- Illumination System: 3.3 watt -30ยฐ incident transmitted light systems with led lamps. both lights regulated with power supply and has separate brightness controls. homogeneous daylight (6500ยฐk), free of uv and ir emissions universal 100v-240v, 50/60hz integrated power supply with voltage flux stabilizer.
- Packing & Accessories: Carrying case: Styrofoam packing & outer corrugated box. supplied with: user manual, vinyl dust cover, cleaning cloth.
