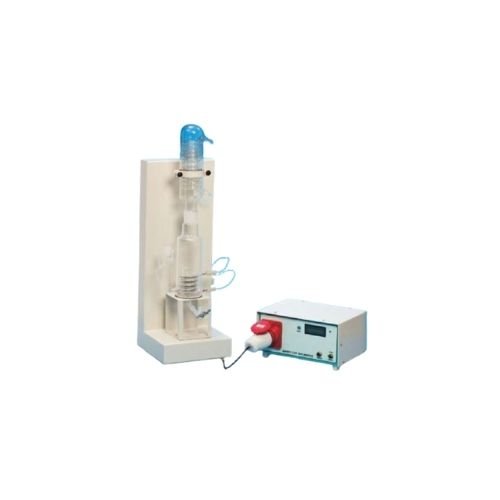

Water Double Distillation, All Quartz – Vertical Model
- All Quartz Double Distillation consists of demountable Upper And Lower Boiler.
- The Lower Boiler has a built in heater enclosed in a Quartz Boiler with a Cup on top.
- The Upper Boiler has a built in Quartz coil and Condensing unit which is mounted on the boiler with the help of Ball and Socket joint.
- Double walled condenser ensures separate condensation of vapors coming from the two boilers using a single cooling circuit.
- The unit in mounted on a specially designed powder coated stand and is also provided with Automatic Safety Control Unit.
- This new Dual – Safety cut off has been designed for better and accurate control of the distillation unit.
- It has been incorporated with advanced Microprocessor based electronic circuitry.
- The alpha numeric LCD which has been used which shows all messages that corresponds to the running of the machine.
Compare
Special advantages of Demountable Model:
- Compact and easy to install.
- Easy cleaning of the first boiler since it can be dismantled from the assembly.
- Ease of interchangeability as it is provided with Ball & Socket joint.
- Boiler and Condenser have larger boiling space resulting in balanced boiling and improved quality of distilate.
