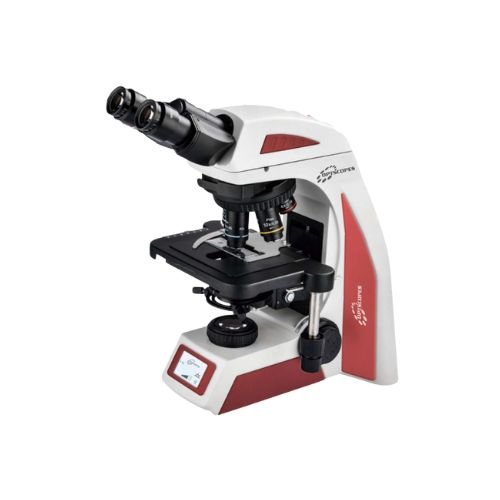

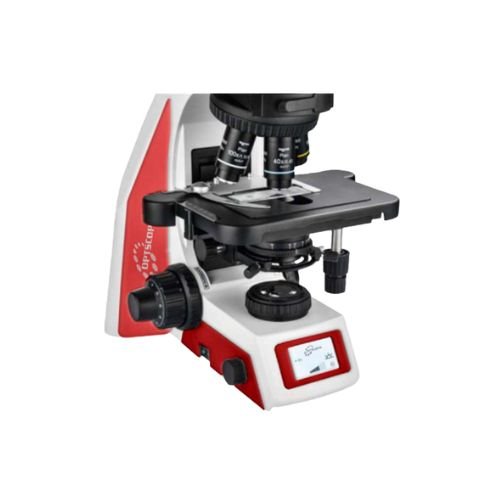

Advance Pathological Microscope with Integrated LCD Display
- Smart Memory Based eco-sence Model.

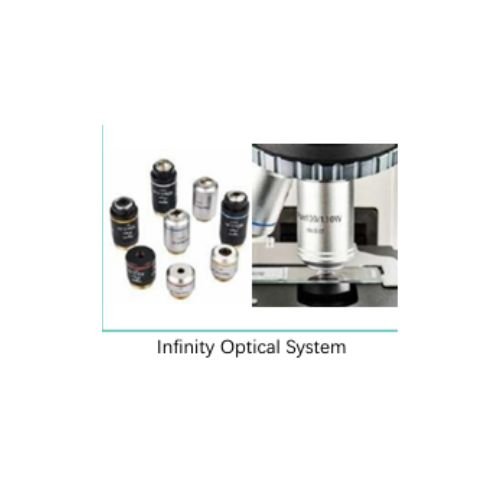

- NIS Infinity Optical System.
- 22mm Wide Field of View.
- Various Observation Methods.

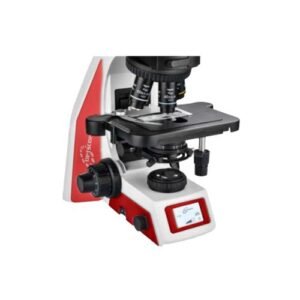

Coded Nosepiece:
It can memorize the illumination brightness when using each objective. When different objectives are converted to each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency.
$2,818.20 $4,294.40
Various Observation Method:
With the deepening of research in various fields, a single observation mode can no longer meet the daily scientific research work. As a continually upgradable microscope, Green can be extended on basic models to show a variety of observation capabilities.

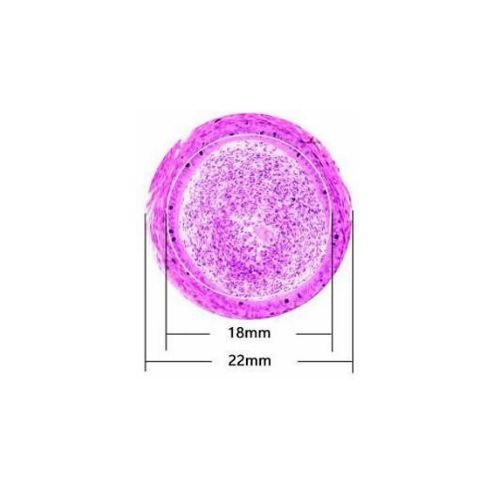

22mm Wide Field of View:
- ย The Green microscope achieves the wide field of 22mm view with 10X eyepieces for a more comprehensive observation content and faster sample observation.
- The eyepiece adopts a flat field distortion-free design to prevent the edge of the field from being imaginary and stray light.
| GTIN | |
|---|---|
| Model | Binocular Microscope – Mx50i, Tinocular Microscope – Mx50i |
- Optical System: Infinity optical system.
- Eyepiece: EW10x/22mm.
- Viewing head: Infinity seidentopf binocular viewing head, inclined at 30ยฐ interpupillary 47-78mm.
- Objective: Infinity plan objective nis60.
- Nosepiece: Backward quintuple nosepiece(coding).
- Rackless stage: Rackless stage 230mm x 150mm, moving range 78mm x 54mm.

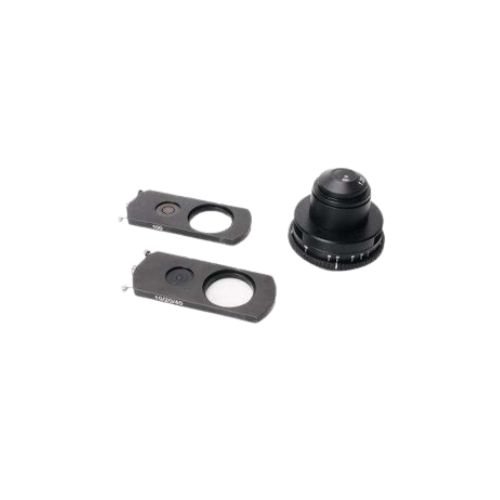

- Condenser: Inserted abbe condenser NAI .25 (lncluding empty plate).

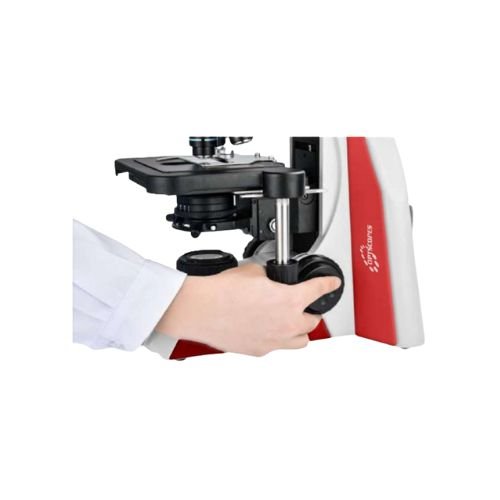

- Focusing system: Coaxial coarse and fine adjustment, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, fine division 0.002mm,moving range 30mm.
- Illumination: 3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.).

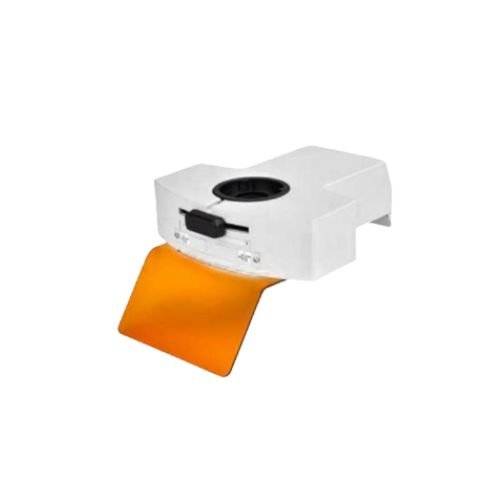

- Fluorescence Attachment: 3W LED, TwoWave Range (B, G, U, V can be combined), Fly-eye Lens Illumination.
- Accessories: 1x Photo Attachment, 0.5x Photo Attachment, Simple Polarization Set, Camera, App Software.
- Filter: Green.
