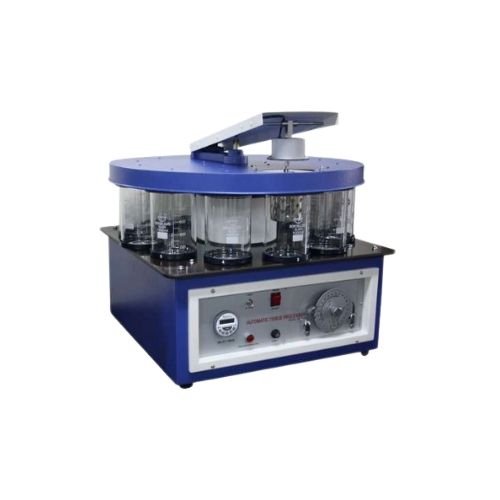

Automatic Tissue Processor
- A compact and sturdy designed with latest technology for complete dehydration and filtration of human tissues up to final fixing in wax.
- Programmable provision for dehydration cycle (user selectable) is a standard feature.
- Tissues continuously agitates by rotating S.S. tissue basket for through penetration of regents.
- The safety device prevents the transfer of tissue from 10th stage to 11th stage to 12 the stage if the wax is not melted properly due to power failure or any malfunctioning thus protecting the unit and the tissues.
- The Auto locking system check the tissues from 12 th to Ist stage to safeguard the accidental reprocessing of the same and lock the machine.
Compare
Technical Data:
- Automatic Tissue Processor with 12 station, 10 Glass Beaker Borosilicate heavy wall thickness without lip to avoid
evaporization and 02 wax bath stainless steel Thermostatically. - Wax Bath fitted with jacket type heater fabricated from Kanthal wire ISI marked fro quick melting and proper melting from top to bottom.
- Stainless steel tissue perforated basket 01 with tissue cassette capacity of 36 pieces.
- All mechanical parts are machined on precision machinery for standardization, all motions running on Ball Bearing oil sealed for long life smoothness and maintenance free.
- Safety handle provided in case of electricity failure. Tissue Basket can be taken out with the help of lifting handle.
- User friendly and trouble free robust model.
| GTIN |
|---|
Standard unit consists of:
- 12Pcs. Glass Beakers without lip Borosilicate.
- 02Pcs. stainless steel wax bath thermostatically controlled.
- 03Pcs. Timing Disc 24 hours.
- Notch cutting plier-01 pc.
- 12Pcs. Tissue capsule rectangular S.S.
- MainLead 01 Pc.
- Glass Fuse 02 Pc.
- DustCover01 Pc.
- OilCan0Ol Pc.
- Instruction Manual and Guarantee Card 01 Pc.
