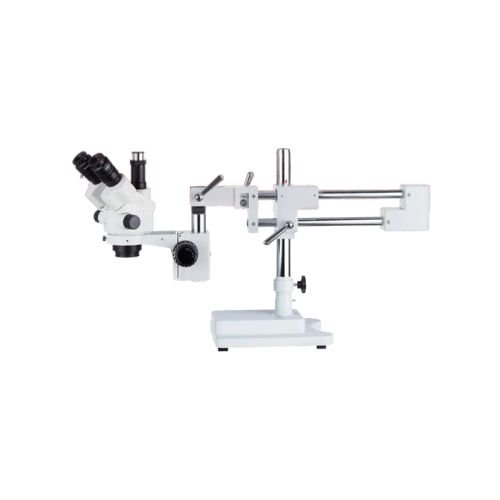

Boom Stand
- Stand Type: Universal stand with Sturdy base and dual swivel feature.
- Swivel Range: 180′ swivel mechanism for bonder arm independent of horizontal arm. 360′ swivel mechanism for horizontal arm around vertical column.
- Total Length of Horizontal Arm & Bonder Arm: 600mm.
- Horizontal Arm Adjustment Range: 280mm 500mm 300mm 250-260 mm X?
- Vertical Column Height: 50-260 mm X 45-50 mm.
- Base Weight: 17 Kg.
Compare
