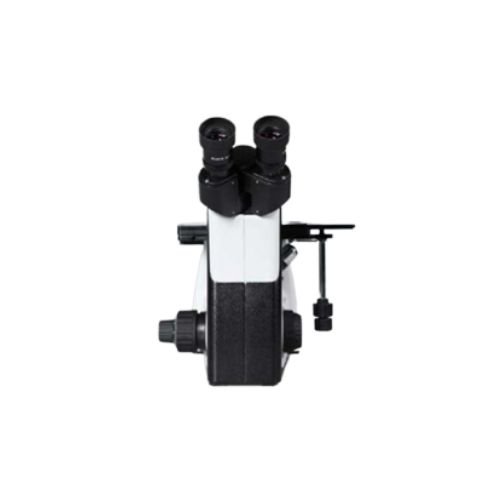

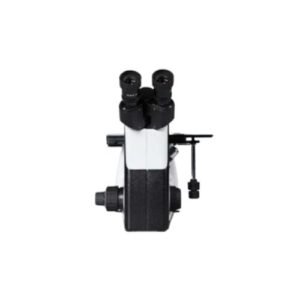

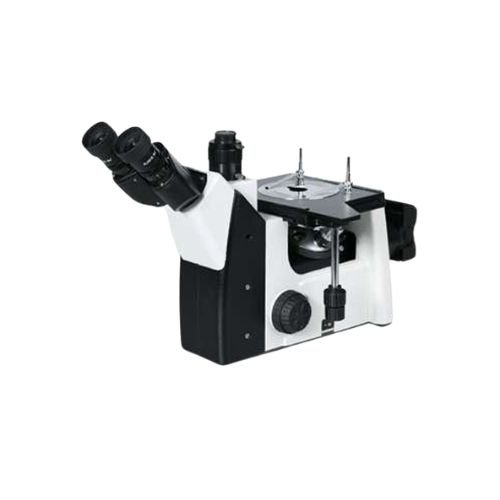

Inverted Metallurgical Microscope – IE200M
Optical System:
- Adoption of PLIOx plan eyepiece and high-performance metal objective lens.
- High resolution high definition images.
- Comfortable observation field of view.
Focus System:
- Low-position coaxial focus system.
- Mechanical stage, thickness: 38mm per revolutiön, precision 0.002mm, size: 180mm x 155mm, travel range: 75mm x 40mm.
Lighting System:
- Kohler transmission illumination, variable aperture.
- Power 90 240V, 6V/3W bright and long-life LED bulb.
Video & Photo Accessories:
- Collect and store images with specialized metal image analysis software.
Compare
- Optical System: Finity color corrected optical system.
- Viewing Head: Gemel trinocular, 45°inclined, Diopter adjustment ±5 for each side, Interpupillary distance adjustable between: 54-75 mm, refract rate, binocular: trinocular.
- Eyepiece: High eyepoint wide field plan eyepiece PL10X/18mm High eyepoint wide field eyepiece WF 15X/13 High eyepoint wide field eyepiece WF20X/10mm.
- Metallurgical Objective: LWD plan achromatic metallurgical objective 5X, 10X, 20X.
- Nosepiece: Reversed quadruple nosepiece, Reversed quintuple nosepiece.
- Focusing Adjustment: Low position coaxial coarse and fine adjustment. with tightness adjustment. Coarse adjustment range 38 mm; precision of fine adjustment:2um.
- Stage: Three-ply mechanical Stage, area 180mmXl 55mm right hand low position control, Movingrange:75mmx40mm; Metal stage plate, center hole dia. cp12mm.
- Illumination System: Reflection Koehler illumination with iris diaphragm and centerable field diaphragm, wide-range voltage 90-240V 6V/30W halogen bulb (single 3W LED option), with continuous intensity.
- Polarizing Kit: Polarizer and the analyzer can be removed from the optical path, the analyzer can be rotated 360°.
- Photo Accessories: Photo tube (with PK mount), photo eyepiece 3.2X.
- Video Accessories: CTV 0.5X/1.0X.
- Software: Specialized metallographic analysis software.
| GTIN |
|---|
