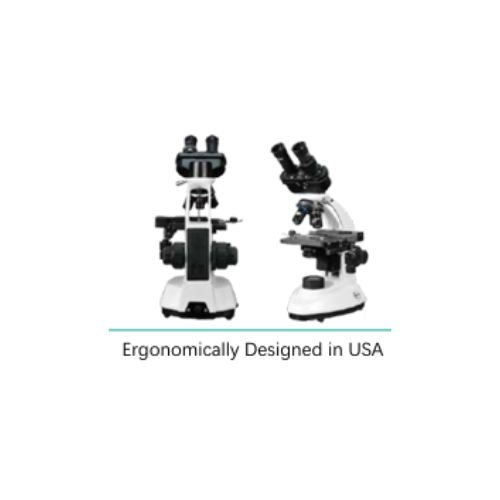

- Main body: Quicklab ergonomically modern designed, all dia casted sturdy balanced.
- Viewing: Body. 360ยฐ rotatable & 45ยฐ inclined head having hard coated prism & graduated diopter setting for eye-piece.

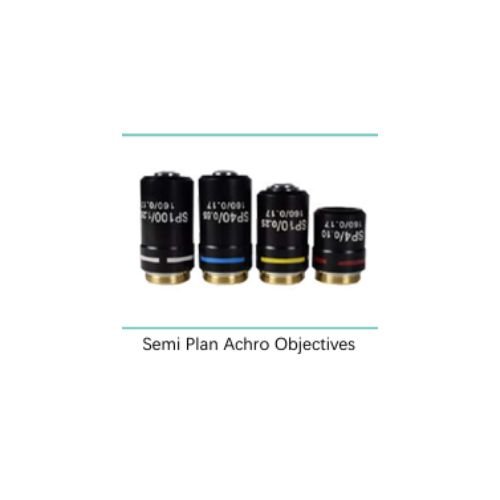

- Objective: German made anti-fungal, anti-reflection coated 4x, 10x, 40x & 100x oil immersion din objective, with modern grip design. (eco model consists of indian din objectives).

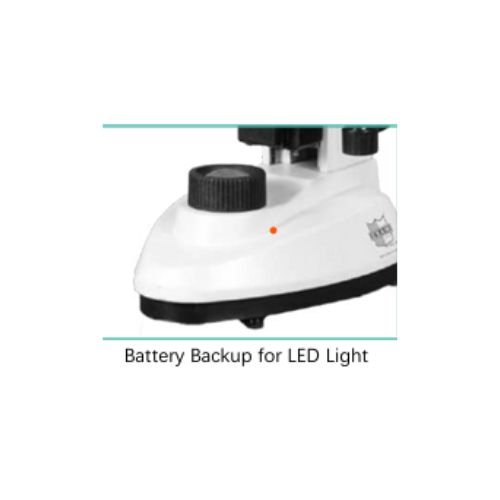

- Light source: High quality LED illumination & SMPS based 100v-220v wide voltage range.

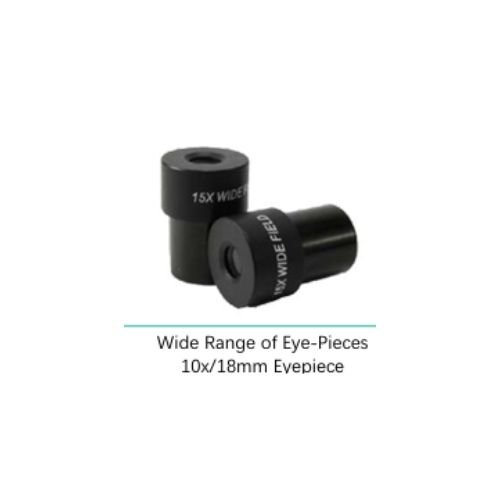

- Eye-pieces: German made anti-fungal & anti -reflection coated 10x wide-field & 15x wide-field pairs, field of view-18mm. (eco model consists of indian 17mm eyepieces).

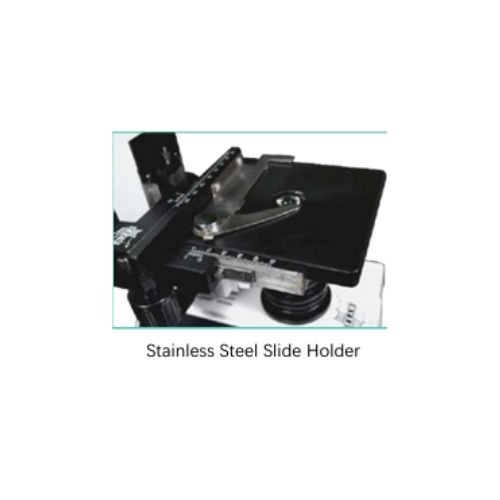

- Stage: Rectangular dual-layer mechanical stage with vernier-reading and chrome clips.

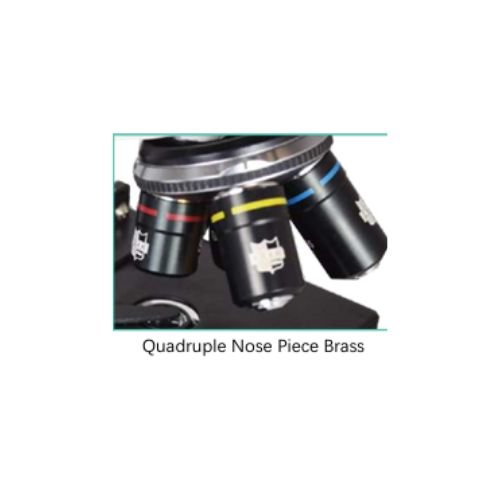

- Nosepiece: outward ball bearing loaded quadruple brass-made nosepiece with positive stop clicks.
- Magnification setting: 4 magnification setting: 40x, 100x, 400x & 1000x.
- Condenser: Aluminium made abbe 1.25 na condenser with copper iris diaphragm & swing in-swing out filter holder.
- Packing & Accessories: 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover-slips. packed in styrofoam box & card board box with instruction manual.

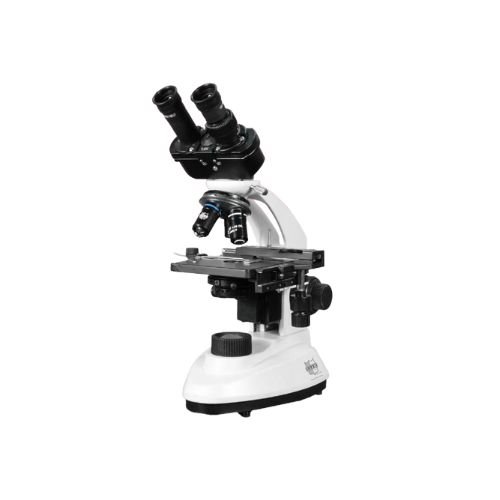

Co-Axial Microscope
The modern microscopes of the CXL mini is especially developed for educational purposes with primary focus on ergonomics and excellent price/quality ratio. These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives.
- Binocular model with WF 10x/18 mm eyepiece(s).
- Revolving nosepiece with four achromatic objectives.
- Coaxial coarse and fine adjustments with rack stop.
- Height adjustable Abbe condenser with iris diaphragm.
- LED illumination.
- Models with X-Y mechanical stage have rechargeable battery.
- Ergonomic stand.
₹18,500.00 ₹30,000.00
GTIN |
---|
