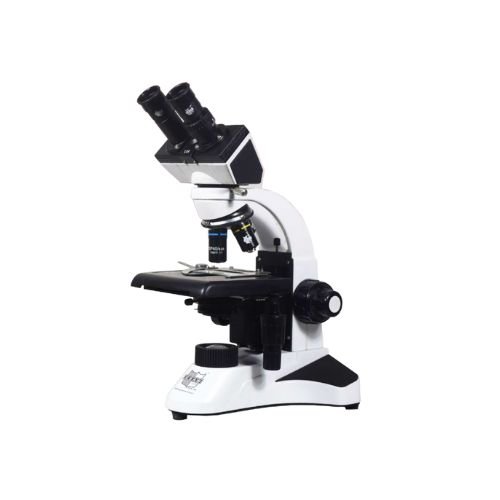

Co-Axial Microscope – CXL5
The modern microscopes of the CXL series are especially developed for educational purposes with primary focus on ergonomics and
excellent price/quality ratio. These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives.
- Monocular, binocular and trinocular models with WF 10x/18 mm eyepiece(s).
- Revolving nosepiece with four achromatic objectives.
- Coaxial coarse and fine adjustments with rack stop.
- Height adjustable Abbe condenser withiris diaphragm.
- LED illumination.
- Models with X-Y mechanical stage have rechargeable battery.
- Ergonomic stand.
Price range: ₹17,000.00 through ₹21,000.00

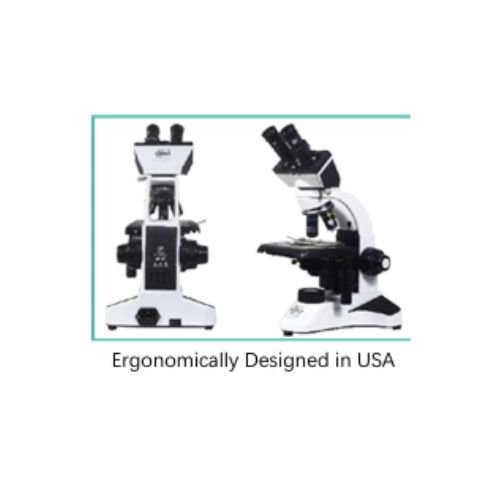

Compare- Main Body: Quicklab ergonomically modern designed, all dia casted sturdy balanced body. 360° rotatable & 45° inclined head having hard.
- Viewing: Coated prism & graduated diopter setting for eye-piece. im series is monocular head; bm series is binocular head and tm series is trinocular head.

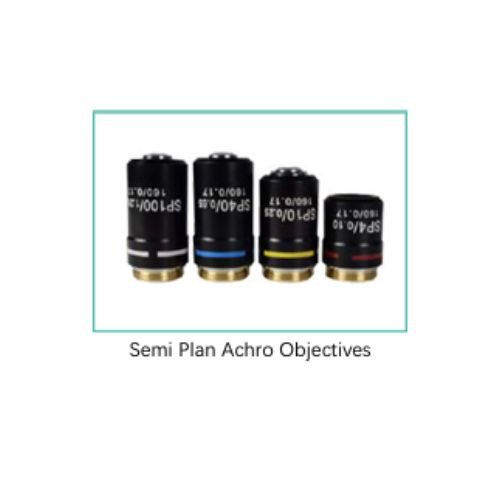

- Objective: German made anti-fungal, anti-riflection coated 4x, 10x, 40x & 100x oil immersion din objective, with modern grip design. (eco model consists of indian din objectives).

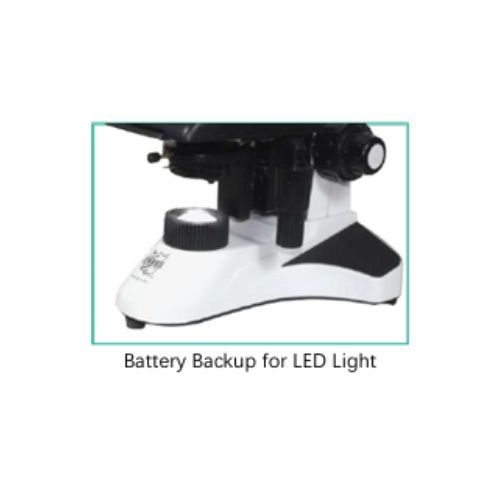

- Light source: High quality led illumination & smps based 100v-220v wide voltage range.

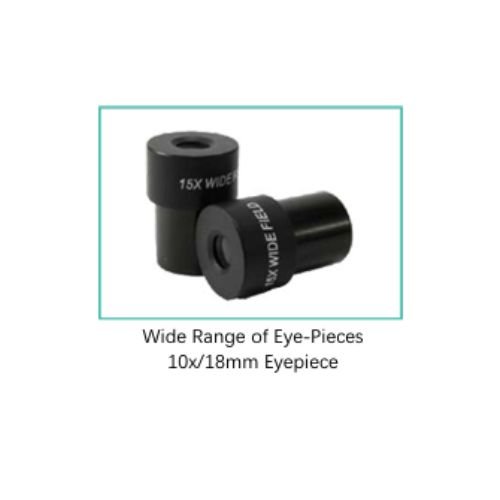

- Eye-pieces: German made anti-fungal & anti -reflection coated 10x wide-field & 15x wide field pairs, field of view-18mm. (eco model consists of indian 17mm eyepieces).

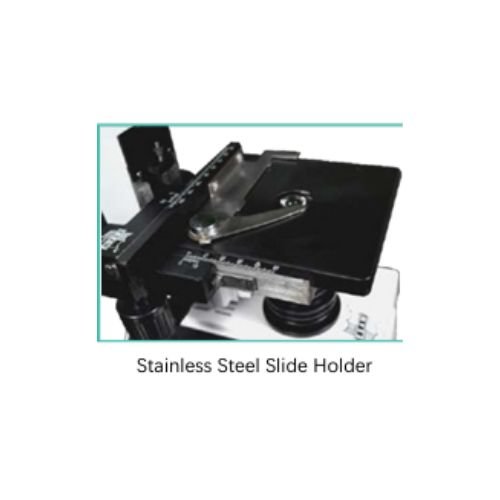

- Stage: Rectangular dual-layer mechanical stage with vernier-reading and chrome clips.

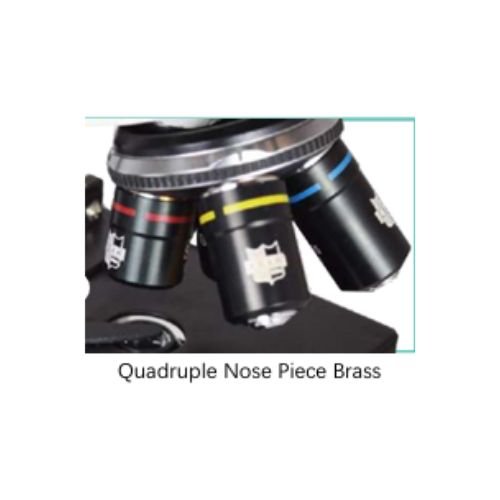

- Nosepiece: Outward ball bearing loaded quadruple brass-made nosepiece with positive stop clicks.
- Magnification Setting: 4 magnification setting: 40x, 100x, 400x & 1000x.
- Condenser: Aluminium made abbe 1.25 na condenser with copper iris diaphragm & swing in-swing out filter holder.
- Packing & Accessories: In box content-main body, monocular/binocuar/trinocular viewing head, 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover-slips. packed in styrofoam box & card board box with instruction manual.
| GTIN | |
|---|---|
| Model | Binocular Head, Monocular model, Trinocular Head |
