Microscopes
Co-Axial Microscope – CXL7
The modern microscopes of the CXL series are especially developed for higher educational purposes with primary focus on ergonomics
and excellent price/quality ratio. These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objective.
- Monocular, binocular and trinocular models with WF 10x/18 mm eyepiece(s).
- Revolving nosepiece with four achromatic objectives.
- Coaxial coarse and fine adjustments with rack stop.
- Height adjustable Abbe condenser with iris diaphragm.
- LED illumination have rechargeable battery.
- Models with X-Y mechanical stage Ergonomic stand.
Price range: ₹21,500.00 through ₹25,000.00
Compare- Main body: Quicklab ergonomically modern designed, all dia casted sturdy balanced body. 360° rotatable & 45° inclined head having hard.

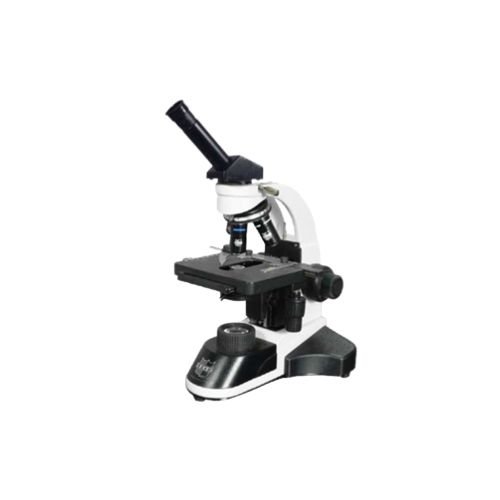

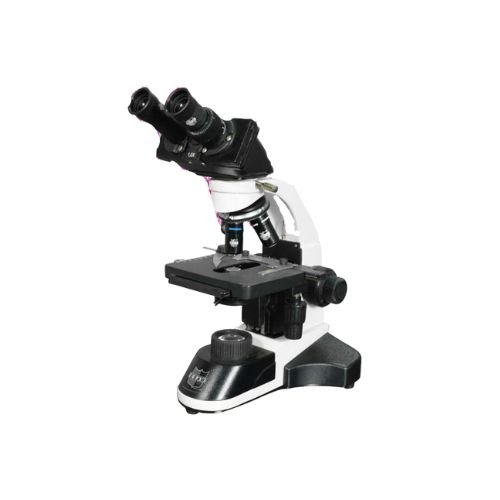

- Viewing: Coated prism & graduated diopter setting for eye-piece. CXL-7m is monocular head; CXL-7i is binocular head and CXL-7t is trinocular head. German made anti-fungal, anti-reflection coated 4x, 10x, 40x & 100x oil.
- Objective: Immersion din objective, with modern grip design. (eco model consists of indian din objectives).
- Light source: High quality led illumination & SMPS based 100V-220V wide voltage range. German made anti-fungal & anti -reflection coated 10x wide-field & 15x wide-field pairs.
- Eye-pieces: Field of view-18mm. (eco model consists of indian 17mm eyepieces).
- Stage: Rectangular dual-layer mechanical stage with vernier-reading and chrome clips.
- Nosepiece: Outward ball bearing loaded quadruple brass-made nosepiece with positive stop clicks.
- Magnification: 4 magnification setting: 40x, 100x, 400x & 1000x.
- Condenser: Aluminium made abbe 1.25 NA condenser with copper iris diaphragm & swing in-swing out filter holder.
- Packing & Accessories: 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover-slips. packed in styrofoam box & card board box with instruction manual.
| GTIN | |
|---|---|
| Model | CXL-7i, CXL-7m, CXL-7t |
