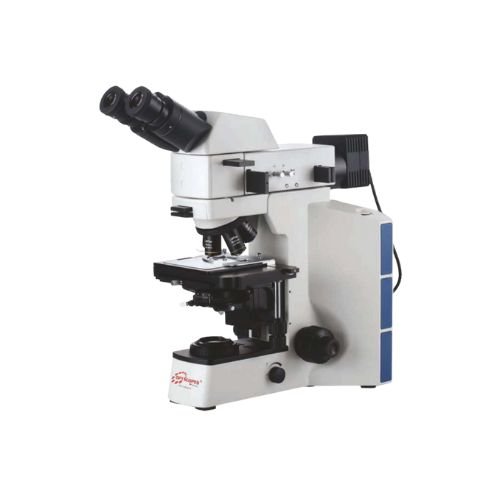

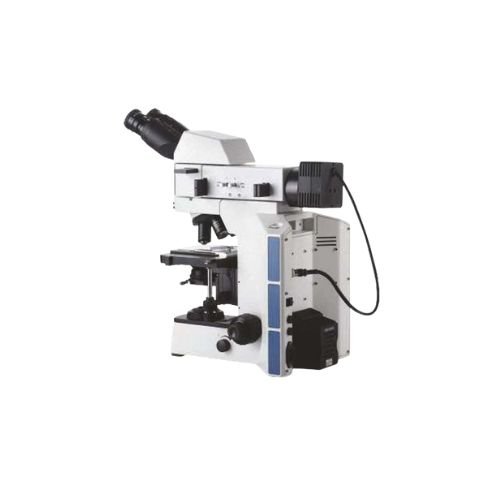

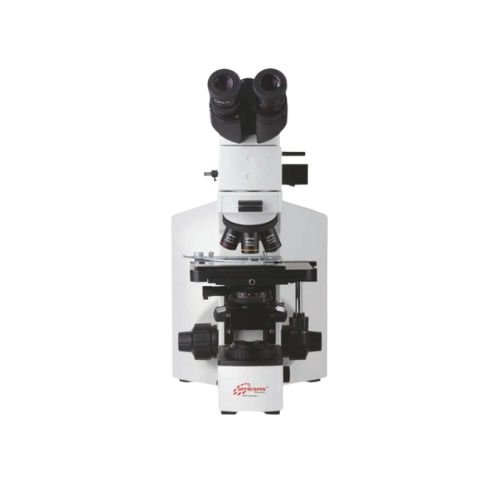

Metallurgical Microscope – CX40M
- The CX40 range is the result of years of experience gained from manufacturing other high quality metallurgical microscopes.
- These instruments include features from more expensive microscope while maintaining excellent imaging performance and comfortable operation.
- The CX40M provides high quality cost-effective solution for metallography analysis and industrial inspection.
Compare

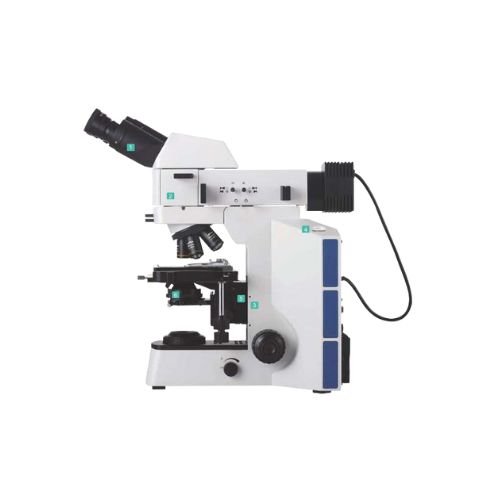

- With the most suitable viewing degree, 30° inclined head holds everyone in the best working state, less tension and fatigue. You can adjust the interpupillary distance to optimum according to the: scale on viewing head. Reflected illuminator with field/aperture diaphragm and oblique light device.
- As well as slots for polarizing kit and filters, adopts Koehler illumination system. Comparing with oalther LED, single 5W LED with warm white light : (3000-3300K) reduces the fatigue on observer’s vision at the extreme. With pull-rod devices for adjusting the centers of field and aperture diaphragm, stray light can be eliminated by expanding or shrinking the illumination zone. Simple polarizing observation is available with pluggable polarizer kit. More ideal images are here with different filters.
- The highest sample can be tested is 28mm with transmitted & reflected frame while 78mm high sample is available with reflected frame, as the stage can be dropped 50mm by loosening the screw in the stage holder. M4 wrench for socket head screws places in the frame, making the best of the available space and improving your working efficiency. Up-limit device is helpful to avoid the damage caused by impact between sample and objective lens. Using the outstanding condenser system of New designed RX50M, much more transmitted light can be through with bigger numerical aperture and stronger intensity.

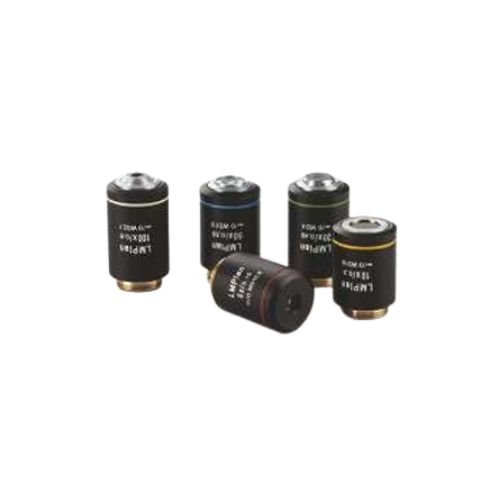

- With higher color correction and better coating design, the new and improved LMPlan series objectives enhance the image resolution and color reducibility.
| GTIN |
|---|
- Optical System: Infinity color corrected optical system.
- Viewing Head: 30° inclined gemel binocular head, interpupillary distance: 54mm-75mm, left diopter ±5 adjustable 30° inclined gemel trinocular head, interpupillary distance: 54mm-75mm, diopter ±5 adjustable, splitting ratio R:T=100:0 or 50:50.
- Eyepiece: High eye-point wide field plan eyepiece PL10X22mm, High eye-point wide field plan eyepiece PL10X22mm, with reticle, High eye-point wide field plan focusing eyepiece Pl10x22mm High eye-point wide field plan eyepiece PL15X16mm.
- Objective: LWD plan achromatic metallurgical objective 5X / 10X / 20X / 50X / 100X.
- Nosepiece: Reversed quintuple nosepiece.
- Focus Adjustment: Transmitted & Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 28mm high sample is available. Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 78mm high sample is available.
- Stage: Double layer mechanical stage with X/Y coaxial adjustment, size: 175mmx145mmt moving range: 76mmx42mm. Metal plate for transmitted frame; glass plate for transmitted & reflected frame.
- Reflected Illumination: Wide-range voltage 100V-240V AC50/60Hz, reflected lamp-house with single 5W LED, warm color. Koehler illuminator with oblique light device, center adjustable field and aperture diaphragm Wide-range voltage 100V-240V AC50/60Hz, transmitted lamp-house with single 5W LED, warm color.
- Transmitted Illumination: N.A.0.9 swing-out achromatic condenser for transmitted frame, with center adjustable aperture iris diaphragm.
- Condenser: Yellow/neutral/IF550/LBD filter for transmitted light Digital camera adapter: IX, 0.67 X, 0.5X focusing C-mount, 3.2X photo eyepiece, photo tube with PK or MD mount, relay lens Interference filter for reflected light: Blue filter 480nm; Green filter 520nm—570nm; Red filter 630—750nm; White balance filter High precision micrometer, scale value 0.01 mm.
