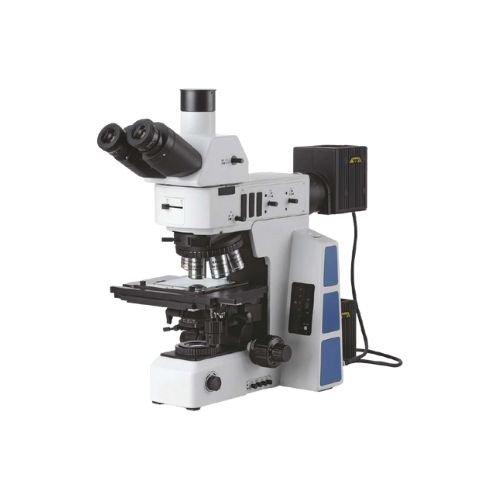

Metallurgical Microscope – RX-50M
Adhering to the philosophy of continuous exploiation & self-transcending for QUICKLAB, new RX50M metallurgical microscope for research with a number of pioneering design in appearance and functions, is born to provide a perfect detection Solution and develop a new pattern of industrial field.
Ergonomic design:

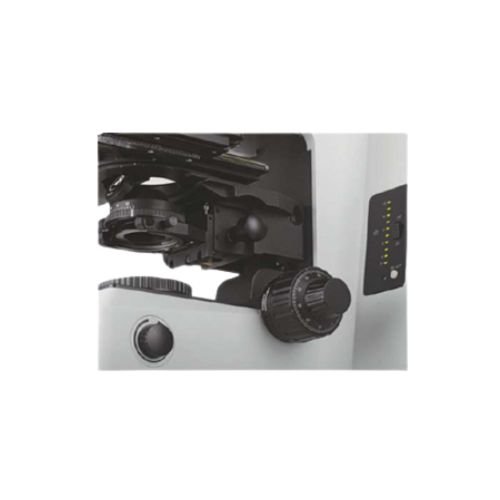

- The intensity can be flexibly adjusted by the dimming device which is located on the right side of frame.
- The voltage change all-digital displays.
- Adjusting intensity and coaxial focusing at the same time, improves the work efficiency.
- Reflected or transmitted illumination can be switched by the button on the digital dimming display.
- Using the RE-SET button to keep the light intensity at around 8V (with a camera mark on the dimming display) which is an optimal voltage fort photomicrography.

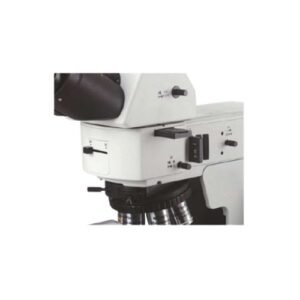

- Four built-in filter holders with three standard filters, one empty holder for optional filter.
- All the filters can be moved out the optical path by pulling out the lever.
- Low position coaxial focusing system with tension adjustment.
- The coarse range is 25mm and the fine precision is 0.001 mm.
- The height of a tiny sample, such as solder ball, can be measured.
Compare

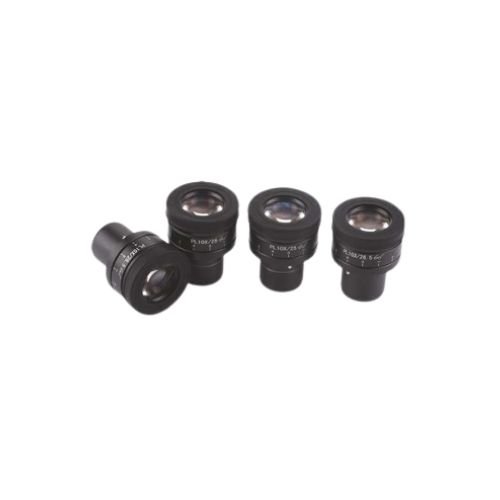

High eye-point ultra wide field plan eyepieces:
RX50M eyepiece breaks through 22mm conventional field of view, reaching to 25 mm and 26.5 mm, much smoother and wider field of view, is helpful to improve the work efficiency. Locating pin on eyepiece inserts into the eyepiece tube, fixing the eyepiece for easy focusing.
Bigger adjustable range of diopter from -8 to +5, meets more demands of different users. Eyepiece cup can be turn up to avoid external stray light. Spectacle wearers should turn down the cup to protect both spectacles and eyepieces.

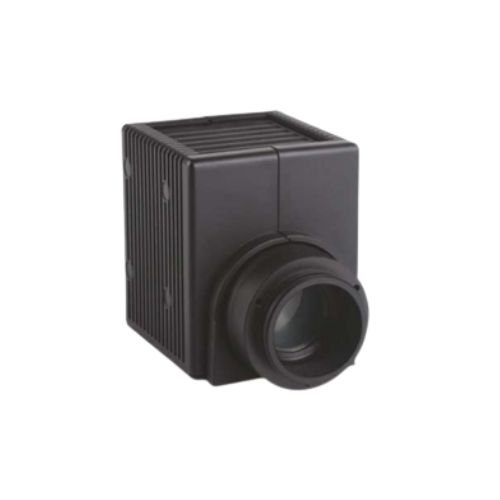

Transmitted and reflected illuminator:
12V 100W long lifetime lamp house with PHILIPS 7724 halogen bulb, provides bright and uniform light. New swing-out type achromatic condenser (N.A.0.9) optimizes the performance of Kohler illumination in lower magnification and corrects the chromatic and spherical aberration.
| GTIN |
|---|
- Optical System: Infinity color corrected optical system.
- Viewing Head: Erect image, 30° inclined gemel trinocular head, interpupillary distance: 50mm-76mm; splitting ratio or 0:100 Inverted image, 30° inclined gemel trinocular head, interpupillary distance: 50mm-76mm; splitting ratio or 20:80 or 0: 100.
- Eyepiece: High eyepoint wide field plan eyepiece PL10X25mm, diopter adjustable High eyepoint wide field plan eyepiece PL10X25mm, With reticle, diopter adjustable High eyepoint wide field plan eyepiece PL10X26 5mm, diopter adjustable High eyepoint wide field plan eyepiece PL10X26 5mm, with reticle, diopter adjustable.
- Objective: BD semi-apochromatic metallurgical objectives (5X/10X/20X/50X/100X) Semi-apochromatic metallurgical objectives (5X/10X/20X/50X/100X).

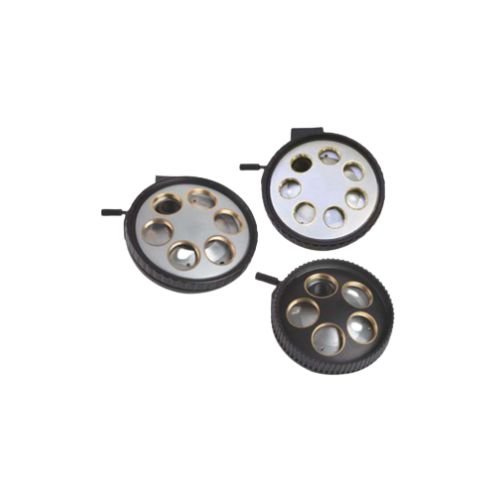

- Nosepiece: BD quintuple nosepiece, BD sextuple nosepiece Sextuple nosepiece, septuple nosepiece.
- Frame: Reflected/ Transmitted body low-position coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision. 0.001mm With coarse adjustment stop and tightness adjustment, Built-in 100-240V wide voltage transformer, double-way power output; intensity adjustable by digital set and reset; switch for reflection and transmission; built-in transmitted filters LBD/ND6/ND25), Reflected body, coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision: 0.001 mm, With coarse adjustment stop and tightness adjustment. Built-in 100-240V wide voltage transformer; intensity adjustable with digital set and reset.
- Stage: 4 inch three layers mechanical stage with glass plate, moving range: 102mm(Y)*105mm(X).
- Condenser: Swing-out type achromatic condenser (N A 1).9).

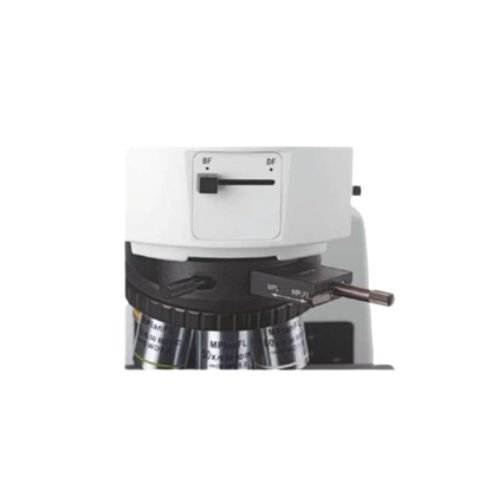

- Reflected Illuminator: Reflected illuminator With iris field diaphragm and aperture diaphragm, central adjustable. With filter slot and polarizing slot. With switch for bright and dark field.
- Lamp House: 12V/10()W halogen lamp house, center pre-set.
- Accessories: Camera adapter: 0.5X focusing C-mount Fixed polarizer, fixed analyzer, 360° rotatable analyzer DIC attachment Interference filters for reflected light: High precision micrometer scale value 0.01mm.
