Microscopes
Upright Fluorescence Microscope
- Upright fluorescence microscope with transmitted and reflected lighting, and a six-filter turret.
- The microscope is built around an infinity-corrected optical system with a wide magnification range, and Koehler diascopic and episcopic illumination.
- The powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are ultraviolet, violet, blue, and green excitation blocks.
- The sub-stage illuminator uses a 30W halogen lamp with field-lens and diaphragm for even, high-contrast lighting.
Compare
- 40X to 1000X magnification range using a reversed quintuple lens turret for five unique settings.
- A scalable epi-fluorescence microscope for laboratories and universities with wide-spectrum 100W mercury HBO arc-lamp and four turret-mounted filter blocks.
- Includes ultraviolet, violet, blue, and green excitation filter blocks for popular fluorochromes.
- A robust, high-performance microscope with superior optics and mechanical design.
- Super-widefield optics provide a larger field-of-view so you can see more specimen at anymagnification.
- The infinity-corrected optical system reduces distortion and improves color accuracy.
- The Koehler illumination system provides centered, evenly-distributed lighting with a field aperture for maximum contrast and definition.
- The trinocular head provides a dedicated photo port for mounting a camera.
| GTIN |
|---|
- Optical System: Infinite-conjugate.
- Reference Focal Length: 200mm.
- Head: Trinocular, 300 incline, 3600 rotatable.
- Interpupillary Adjustment: Siedentopf compensation-free gemel, 48-75mm.
- Ocular Diameter: 30mm.
- Ocular Diopters: Left ocular.
- Eyepieces: 10x.
- Photo Port: Height-adjustable yx series, 23mm tube mount .

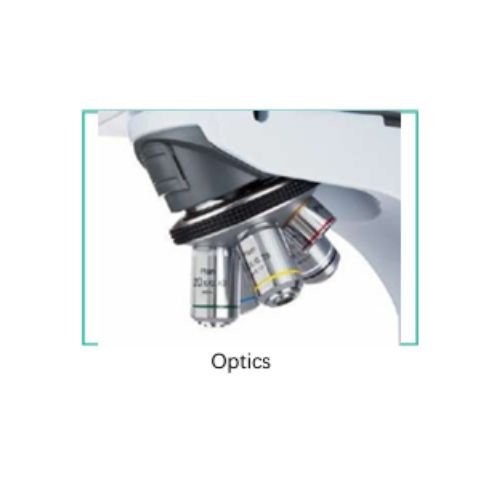

- Objective Lenses: Infinity-corrected.
- Objective Parfocal Distance: 45mm.
- Objective Mounting Thread: rms 20.32mm.
- Objective Turret: Reverse quintuple, ball-bearing movement.
- Focusing system: Coaxial coarse and fine focus, tension control.
- Focus Range: Travel 24mm, coarse stroke37.7mm per rotation, fine stroke 0.1 mm per rotation.
- Stage Design: Double-layer with caliper.
- Stage Dimensions: 185mm x 142mm.
- X-Y Translation Range: 75mm x 55mm.
- Episcopic Illumination (fluor): 100w mercury hbo arc-lamp.
- Fluorescence Filters: Ultraviolet: bp330-385nm, dm400nm, ba420nm violet: bp400-41 nm, dm45snm, ba455nm blue: bp460-495nm, dms05nm, ba510-550nm green: bp510-550nm, dm570nm, ba590nm.

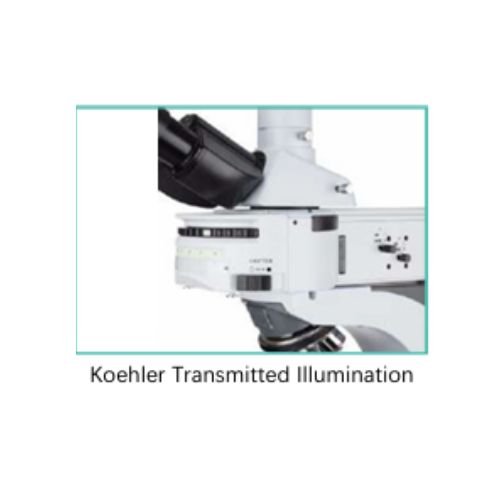

- Transmitted Illumination: 6v30w halogen, continuous-adjustment, rear-mount housing with aspherical collector.
- Condenser: NAO. 9/0.25 achromatic swing condenser with iris diaphragm.
- Sub-stage Condenser-holder: Rack and pinion.
