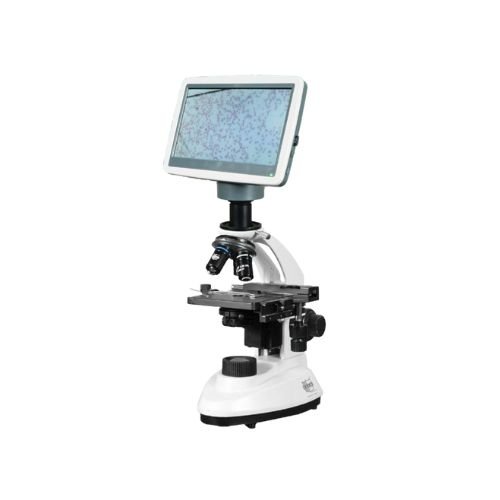

Co-Axial Digital Head Teaching Microscope – Scopepad Mini

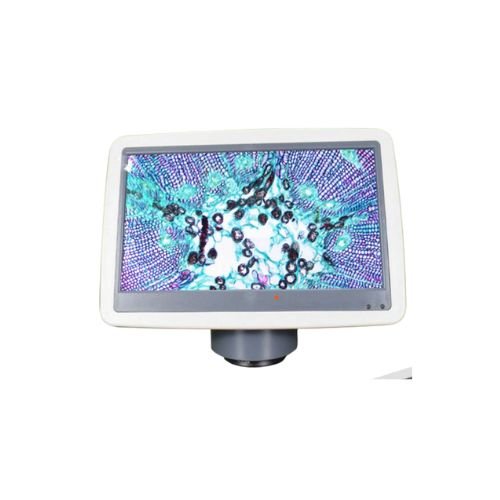

The Co-axial Microscope is also available with a 7” LCD screen, with all the features of the regular Inclined Microscope. This screen allows live viewing, saving images and videos directly to a micro SD card. The HD LCD screen can only be operated as a stand alone.
- All the Scopepad mini LCD microscopes are equipped with 7” IPS LCD screen.
- Screen resolution 1920 x 1080 @ 30 fp.
- Save images and videos directly to micro SD card.
- Image resolution upto 1844 x 1080 in .JPEG format.
- Video resolution 1280 x 720 .AVI format.
- Basic measurement function (line) with calibration.
₹38,500.00 ₹60,000.00
- Main body: Quicklab ergonomically designed, aluminium dia casted sturdy body. Anti-fungal & Anti reflection coated 4x, 10x 40x & 100x oil immersion semi- plan.
- Objective: Achro din objective, fully brass made with great design. Eco model consists of normal this type objectives.
- Focusing: Separate coarse & highly sensitive graduated fine focussing knobs.
- Light source: High quality LED illumination & SMPS based 100V-220V wide voltage range.
- Stage: Graduated rectangular brass made mechanical stage with co-axial movement.
- Nosepiece: Outward quadruple brass made nosepiece with positive clicks.
- Condenser: Aluminium made abbe 1.25 na condenser with copper iris diaphragm & swing in-swing out filter holder.
| GTIN |
|---|
You must be logged in to post a review.
Q & A
You may also like…
-
Microscopes
Co-Axial Microscope
The modern microscopes of the CXL mini is especially developed for educational purposes with primary focus on ergonomics and excellent price/quality ratio. These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives.
- Binocular model with WF 10x/18 mm eyepiece(s).
- Revolving nosepiece with four achromatic objectives.
- Coaxial coarse and fine adjustments with rack stop.
- Height adjustable Abbe condenser with iris diaphragm.
- LED illumination.
- Models with X-Y mechanical stage have rechargeable battery.
- Ergonomic stand.
SKU: CXL5i -
Microscopes
Digital Trinocular Microscope with MD series Camera
MD130 Digital imaging module: Wider dynamic range 1.3MP imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.
MD300 Digital imaging module: YUY2 and MJPG of image format 2048*1536 USB imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.
MD500 Digital imaging module: YUY2 and MJPG of image format 2592*1944 USB imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.SKU: DM-01
Related products
-
Microscopes
Biological Microscope with Display – DG Sense
Salient Features:
- Android 11 system intelligent tablet camera
- 10.5” 3:2 HD screen, better field of view
- Built-in 1/2 target surface 4K camera, details are clearly visible
- Multiple external interfaces, easy to use
- Built-in audio entertainment system, it is an industry device as well as an entertainment device
- WIFI6 adaptable, interactive teaching good assistant
SKU: DGVLCD -
Microscopes
Stereo Zoom Microscope
- Microscope Type: Stereo.
- Eyepiece: 10.x/18mm.
- Objective(s): 2x / 4x.
- Head: Inclined.
- Light Source: 6V, 20W tungsten (incidental/transmitted).
- Light Control: 2-position On/Off.
- Stage: 80 mm frosted glass and reversible black/white contrast plate.
- Interpupillary Adjustment: 2.2 – 3″ (55 – 75 mm).
- Maximum Specimen Height: 1.41′ (35 mm).
- Maximum Height: 14.6″ (37 cm). Weight: 5.5 lb (2.5 kg).
SKU: SM-44 -
Microscopes
Inclined Microscopes
All models with an integrated mechanical stage are supplied with adjustable ABBE condenser. All models are equipped with achromatic objectives. They are supplied with rechargeable battery LED Light.
- Entry-level microscopes.
- Mono, bino, trino and digital models.
- Revolving nosepiece.
- Integrated X-Y mechanical stage.
- LED Illumination with Battery Backup.
- Ergonomic carrying grip.
SKU: IM-01 -
