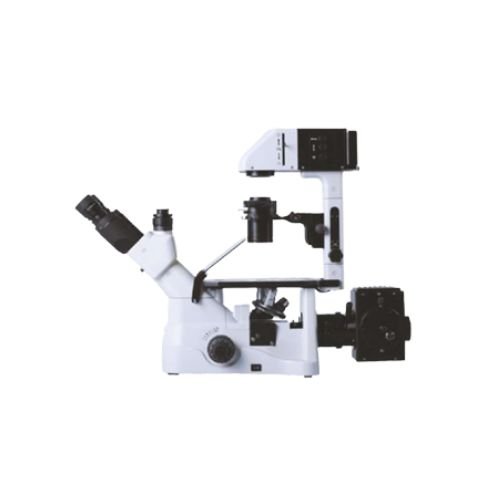

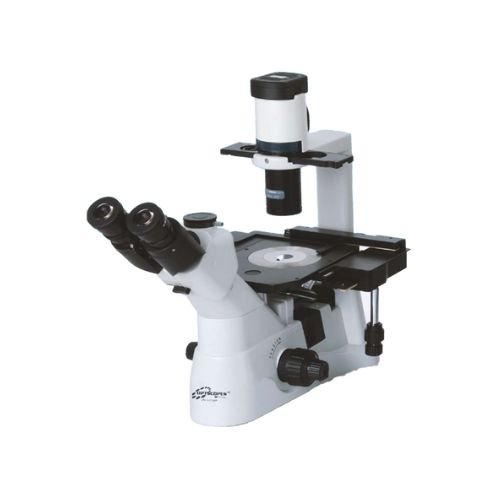

Laboratory Biological Microscope – IMX-900M

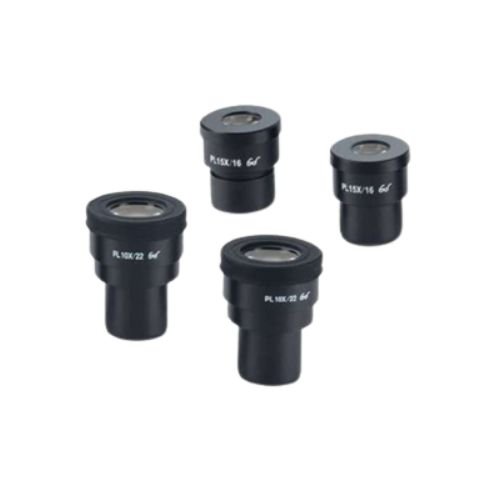

- A new generation of infinity color corrected optical systems with wide-field high eye-point eyepieces and plan achromatic objectives, present you a sharp and bright micro-image.
- Koehler illumination with iris aperture diaphragm, 360° rotatable condenser holder, different light is available.
- Different kinds of accessories, more functions, achieve more methods of observation and suit for all kinds of detections or experiments.
- Extraordinary ergonomics design, long working distance, sturdy and durable, adapts for different work environments.
- Professional vertical fluorescence technology, intelligence Chinese fluorescent image processing software, meets the request of professional image processing.
Attachable mechanical stage:
Moving range: 120x78mm. It can clamp types of standard cell culture plates. With the help of related accessories, it could be used to move the dish, flask, slide and so on.
Compare
Semi-Apochromatic fluorescence objectives:
A new generation of professional infinity plan semi- apochromatic fluorescence lens with high numerical aperture, which is 25% higher than ordinary plan objective lens, can excite the sample with brighter light and make a substantial increase in image re solution and clarity. The system uses the high quality environmental protection materials, no auto fluorescence, high UV through rate. Compared with ordinary bright field achromatic lens in bandwidth and UV transmittance, the objectives with wideband multi-coating technology have obvious advantages.

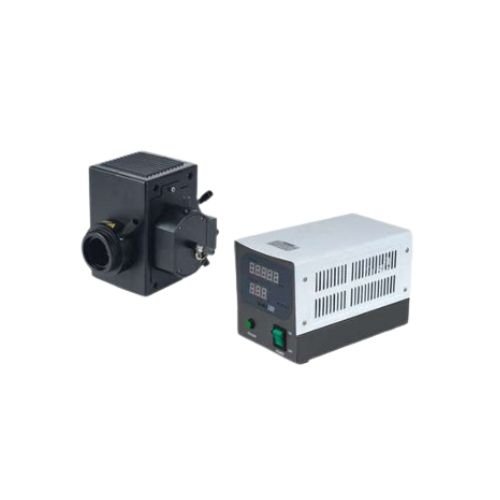

Efficient illumination system:
Best material Si02, refractory and corrosion resistant, high UV through rate, making the illumination more uniform and brighter. High temperature resistant composite plastic is used for insulation design to effectively prevent the heat of illuminator from transferring to the body, The illumination with alterable field diaphragm, center adjustable, can effectively reduce the stray light to obtain best observed
results. UV protection design is used to the whole system, effectively cut off ultraviolet radiation.
| GTIN |
|---|
You must be logged in to post a review.
Q & A
You may also like…
-
Microscopes
Advance Microscope with 4K Coms Camera – Scope – Cam 4K
- The Scope-Cam 4K series camera is the next-generation live view imaging-system with 4K resolution (Video) at 60 FPS.
- It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
- The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems.
- It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (LAN) for image-capture and video-recording.
- Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
- The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of focus.
- With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
- For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
- The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.
SKU: n/a -
-
Microscopes

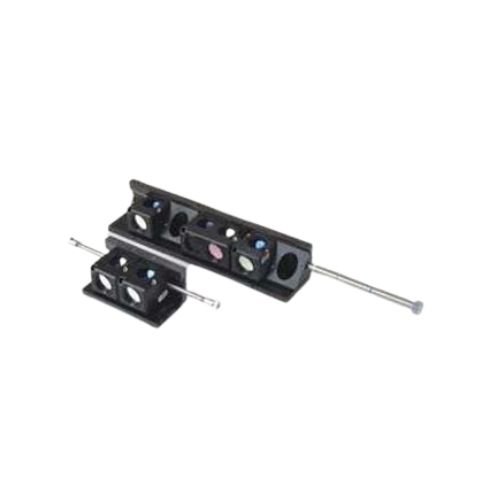

Laboratory Biological Microscope Specialize-6 Filter Turret Fluorescence
Newly designed high-precision disc switching High-graded Si02 quartz, with the characteristics of mechanism, is easy to change filters. It guarantees refractory, corrosion-resistant and high UV through the exact position of the switched filter, can be rate, makes the illumination more uniform and equipped with six fluorescence filters at most. brighter. High temperature resistant composite Selecting driftless high-performance fluorescence plastic, with heat insulation, effectively prevent the filter system, ensures an accurate experiment result heat of illuminator from transferring to the body. of FISH.
- Infinity color corrected optical system, new upgraded Koehler illumination system, presents clear & bright micro-image under each magnification.
- Fire new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
- “Building blocks” design for combining multiple functions, phase contrast, polarizing, dark field attachments can be assembled
on the basis of bright field observation. - Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
SKU: MX-600 -
Related products
-
Microscopes
Co-Axial Microscope
The modern microscopes of the CXL mini is especially developed for educational purposes with primary focus on ergonomics and excellent price/quality ratio. These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives.
- Binocular model with WF 10x/18 mm eyepiece(s).
- Revolving nosepiece with four achromatic objectives.
- Coaxial coarse and fine adjustments with rack stop.
- Height adjustable Abbe condenser with iris diaphragm.
- LED illumination.
- Models with X-Y mechanical stage have rechargeable battery.
- Ergonomic stand.
SKU: CXL5i -
Microscopes
Microscope Digital Display – Scope Pad mini
- Scopepad mini LCD microscopes are equipped with 7” IPS LCD screen
- Screen resolution 1920 x 1080 @ 30 fpSave images and videos directly to micro SD card
- Image resolution upto 1844 x 1080 in .JPEG format
- Video resolution 1280 x 720 .AVI format
- Basic measurement function (line) with calibration.
SKU: SPMINI -
Microscopes
Digital Trinocular Microscope with MD series Camera
MD130 Digital imaging module: Wider dynamic range 1.3MP imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.
MD300 Digital imaging module: YUY2 and MJPG of image format 2048*1536 USB imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.
MD500 Digital imaging module: YUY2 and MJPG of image format 2592*1944 USB imaging module; Imaging software: Future Win Joe microscopic imaging program; Optical matching: Built-in relay lens and field lens; Camera house: compact and light-weight round-shaped shell.SKU: DM-01 -
Microscopes
Inclined Digital Head Teaching Microscope – Scopepad Mini
The Inclined Microscope is also available with a 7” LCD screen, with all the features of the regular Inclined Microscope. This screen allows live viewing, saving images and videos directly to a micro SD card. The HD LCD screen can only be operated as a stand alone.
- All the Scopepad mini LCD microscopes are equipped with 7” IPS LCD screen.
- Screen resolution 1920 x 1080 @ 30 fp.
- Save images and videos directly to micro SD card.
- Image resolution upto 1844 x 1080 in .JPEG format.
- Video resolution 1280 x 720 .AVI format.
- Basic measurement function (line) with calibration.
SKU: IM-D7
