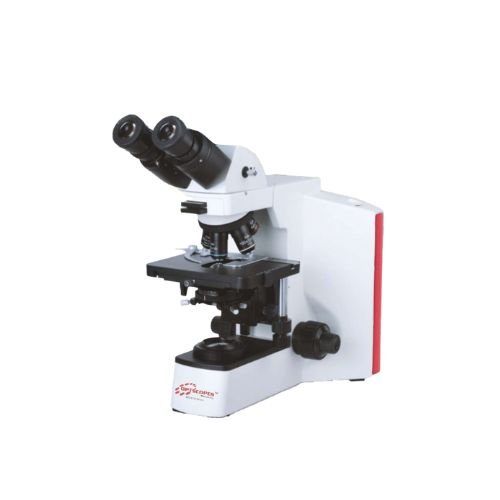

Laboratory Biological Microscope Specialize-6 Filter Turret Fluorescence
Newly designed high-precision disc switching High-graded Si02 quartz, with the characteristics of mechanism, is easy to change filters. It guarantees refractory, corrosion-resistant and high UV through the exact position of the switched filter, can be rate, makes the illumination more uniform and equipped with six fluorescence filters at most. brighter. High temperature resistant composite Selecting driftless high-performance fluorescence plastic, with heat insulation, effectively prevent the filter system, ensures an accurate experiment result heat of illuminator from transferring to the body. of FISH.
- Infinity color corrected optical system, new upgraded Koehler illumination system, presents clear & bright micro-image under each magnification.

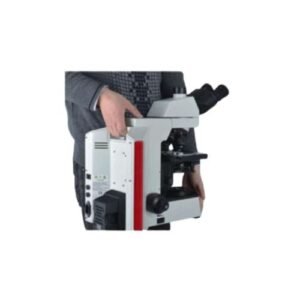

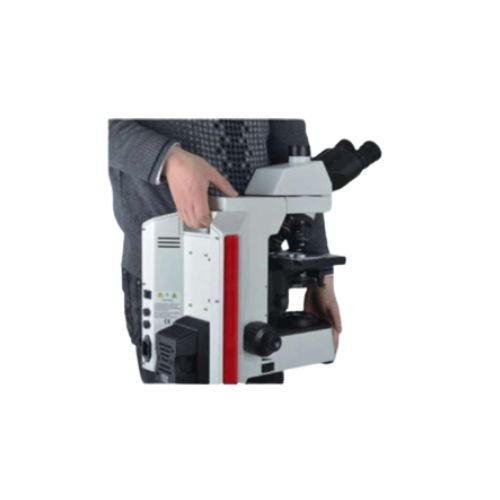

- Fire new ergonomic design, steady system structure, easy operation, is suitable for various working environments.

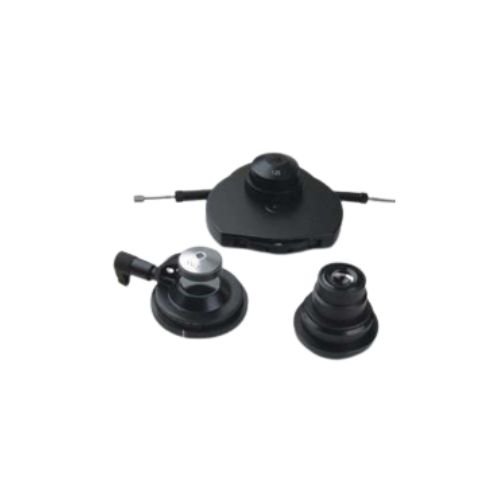

- “Building blocks” design for combining multiple functions, phase contrast, polarizing, dark field attachments can be assembled
on the basis of bright field observation. - Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
Compare
Leading fluorescence microscopy:
Semi-apochromatic fluorescence objectives:
New professional infinity plan semi-apochromatic fluorescence objectives, the best choice for fluorescence observation. Aberration correction and large numerical aperture which is 25% bigger then ordinary objectives, present brighter and clearer image. Adopting high quality environmental protection optical materials, show a excellent effect in fluorescence observation With advanced multi coating wide-band technology, takes the obvious advantages in bandwidth and UV transmittance.
| GTIN |
|---|
- Optical System: Infinity optical system.
- Eyepiece: High eye-point wide field plan eyepiece PL10x22mm, PL15x16mm.
- Viewing head: Efficient infinity gemel binocular/trinocular heade30ยฐ-60ยฐ elevation adjustable 360ยฐ rotatable: interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable.
- Objective: Infinity plan achromatic / phase contrast /semi-apochromatic fluorescence objectives.
- Nosepiece: Revolving quadruple nosepiece quintuple nosepiece.
- Body: Coaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable.

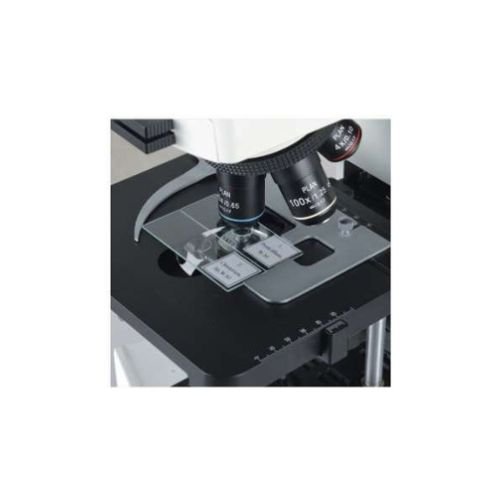

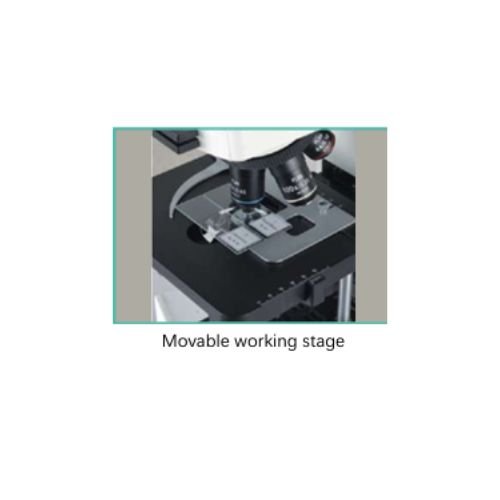

- Stage: 187 x 187mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosive and anti-friction; moving range: 80x65mm precision 0.1mm.
- Condenser: NA.O.9 swing-out type achromatic condenser; NA. 1.2/0.22 swing-out type achromatic condenser; NA-1.25 quintuple phase contrast condenser; N.A.0.g dry dark field condenser; N.A.I .25 Oil dark field condenser.
- Transmitted illumination system: Wide voltage: 100-240V. built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered. intensity adjustable.
- Polarizing Kit: Analyzer 360ยฐ rotatable; polarizer and analyzer can be out of light path Yellow. green, blue, neutral filter.
- Light Splitting Device: R:T=70:30 or special 1x CTV.
