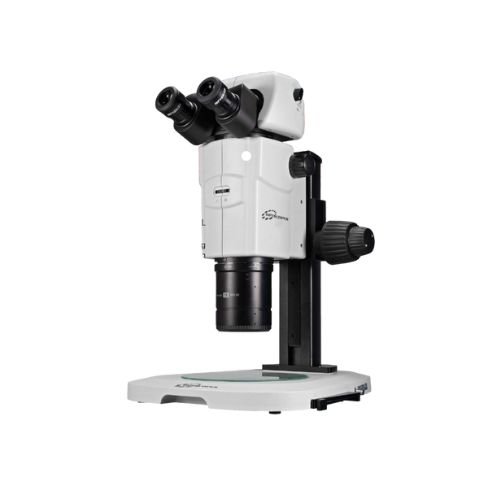

Stereo Zoom Trinocular Microscope

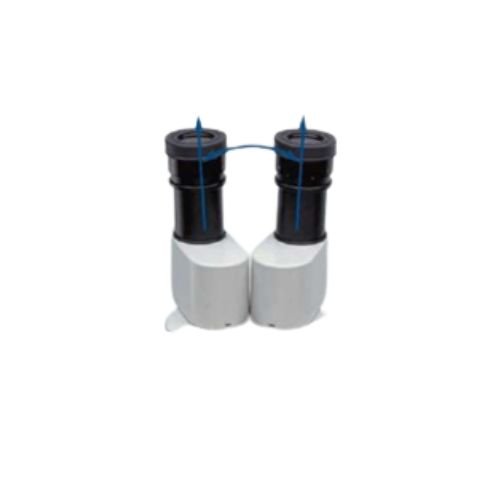

TRINOCULAR VIEWING HEAD AND DIGITAL IMAGING:
The viewing head is comfortable to use The viewing head ane the visibility is adjustable. So you can observe in the most natural and comfortable position. This can minimize the visual fatigue caused by long time observation.
- Digital viewing Standard trinocular viewing head can be connected with camera to realize video real-time observation and Images taken.
- And equipped with special image analysis software to meet your various imaging and analysis in scientific research.
Compare
EXCELLENT OPTICAL ZOOM PERFORMANCE:
The stereoscopic microscope provides 18: 1 zoom ratio Provide high resolution and 18K zoom ratio, with 7.5x-135x zoom range under 10X eyepiece to meet your usage needs from sample overview to detailed observation. The high NA objective Use
the newly developed high NA 1X stereoscopic objective. The NA up to 0.15. Apochromatic optical system Using apochromatic optical system not only in the bright field, even in the fluorescence field, to ensure uniform field brightness at the lowest ratio and the image is clear and reliable at high ratio.

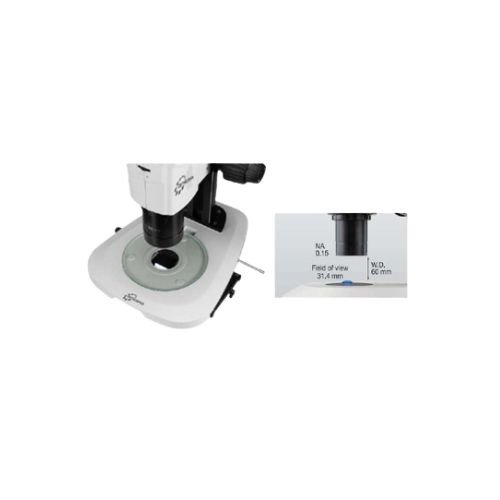

LARGE OPERATING SPACE:
Long working range and wide field of view 1x objective can provide a working distance of 60mm to facilitate you to place and move samples. NA up to 0.15 can provide you with clarity for further study. Large field Df view allows you to see a wider and more comprehensive sample area.
| GTIN |
|---|
- Optical System: Parallel light (zoom type) apochromatic optical system.
- Manual: Zoom.
- Zoom ratio: 18:1.
- Zoom Range: 0.75-13.5x.
- Objective Lens NA. WD: PLAN APO 1x 60 mm.
- Total Magnification: 76-135x.
- Eyepiece (FOV MM): 1x (23).
- Lens Tube (Eye-Piece/Port): Trinocular 20ยฐ fixed inclination lens barrel (100/0, 0/100).
- Focusing Device (Stroke): 60 + 99 mm.
- Adapter: DC 12M 2A.
- Base: LED three-dimensional lighting base (OIC built-in illuminator).
- Observation Method: Bright field, oblique illumination.
- Optional Accessories: Fluorescence, simple polarized light, dark field.
- Weight (Approx.): 10.5 kg.
- Power Consumption (Approx.): 10 W.
